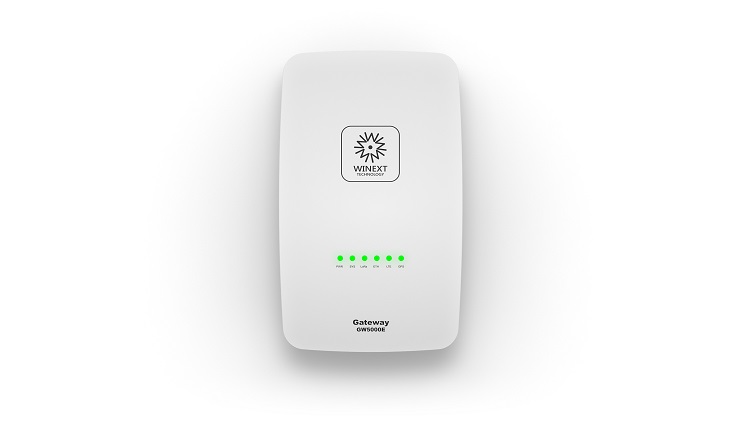

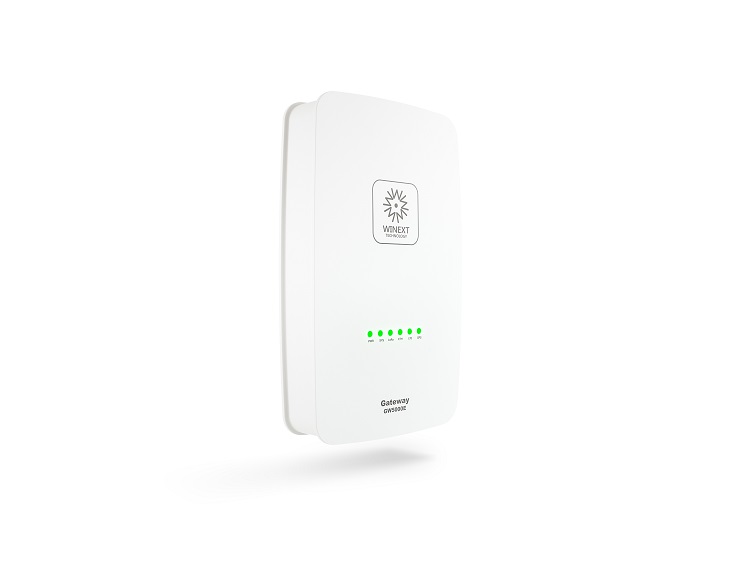

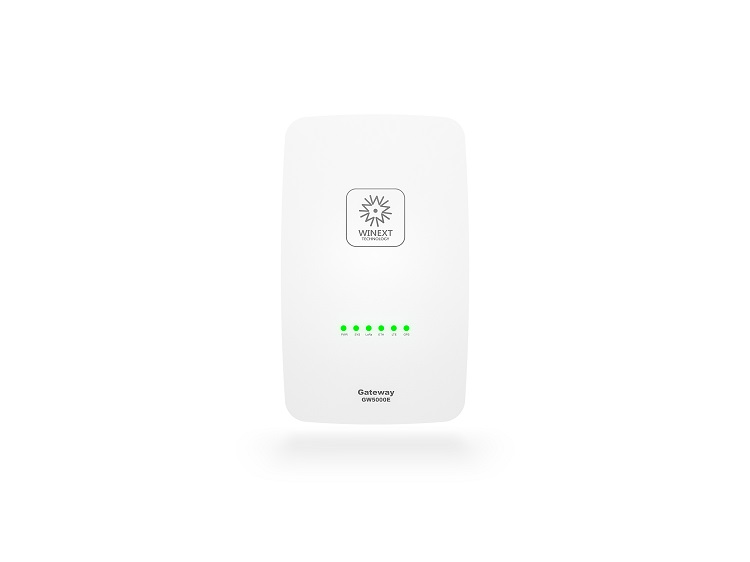

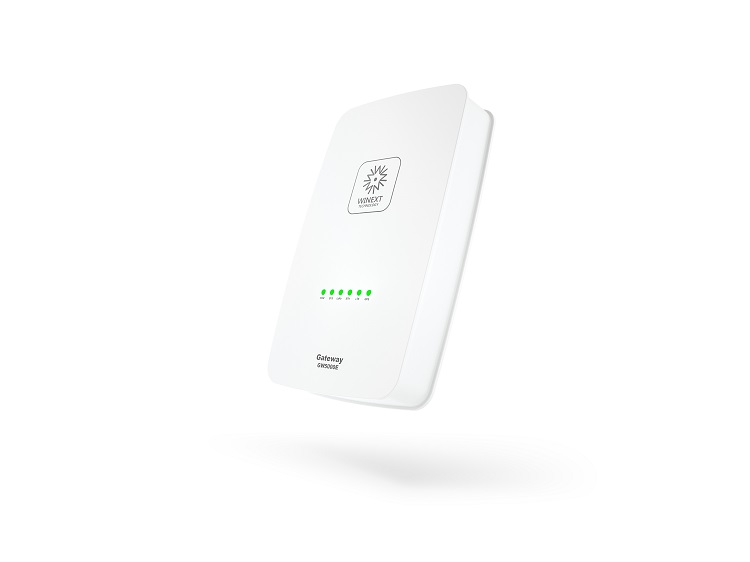

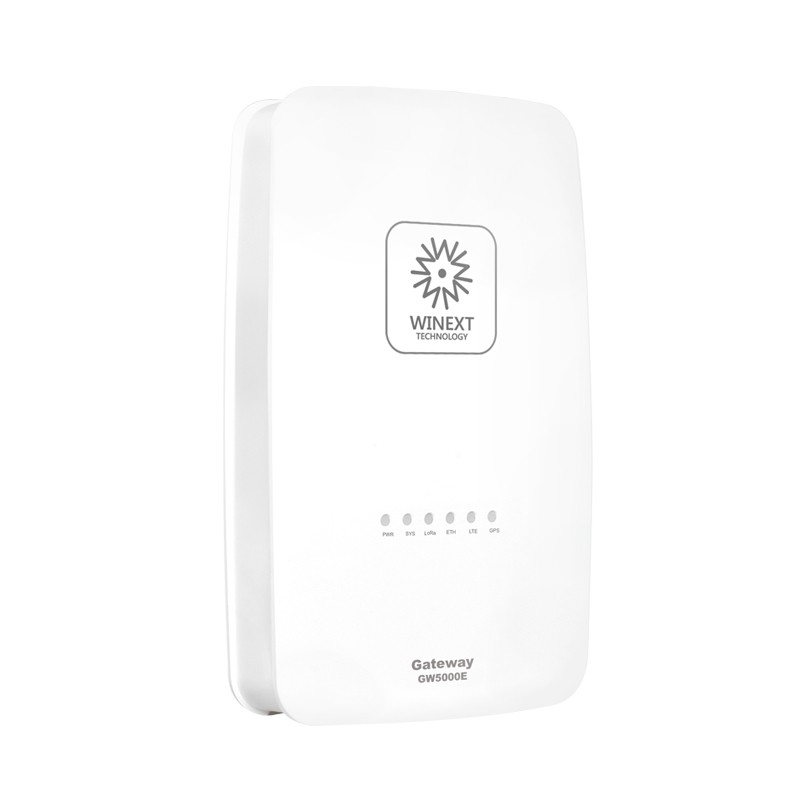

LoRaWAN Gateway GW5000E
Description
GW5000E is designed to be a complete low-cost LoRaWAN compliant gateway. The combination of long range, low power connectivity with LoRa and availability of Wi-Fi infrastructure creates the most effective and economical way to deploy LPWAN networks and gurantee indoor and outdoor coverage. The gateway is designed for high volume indoor and outdoor coverage with IP65 grade for smart factory, smart community, smart parking, smart fire-fighting, assets tracking,and ect.
Features
Ø Supports the standard LoRaWAN protocol with global frequency band options;
Ø Utilizes Semtech SX130X chips;
Ø Support 3G/ 4G, WAN, GPS, Wifi, USB, Console debug port;
Ø DC9~24V Power supply or standard POE Power supply;
Ø PWR, SYS, LORA, ETH, LTE, GPS and other indicators;
Ø 8 Data Channels and 1 control channel, with full-duplex/half-duplex options;
Ø Compatible with network servers such as Tencent Cloud, LinkWAN, TTN, Chirpstack,lorawan-stack,Amazon, etc.;
Ø Supports for Class A/C;
Ø IP65 Protection Rating.

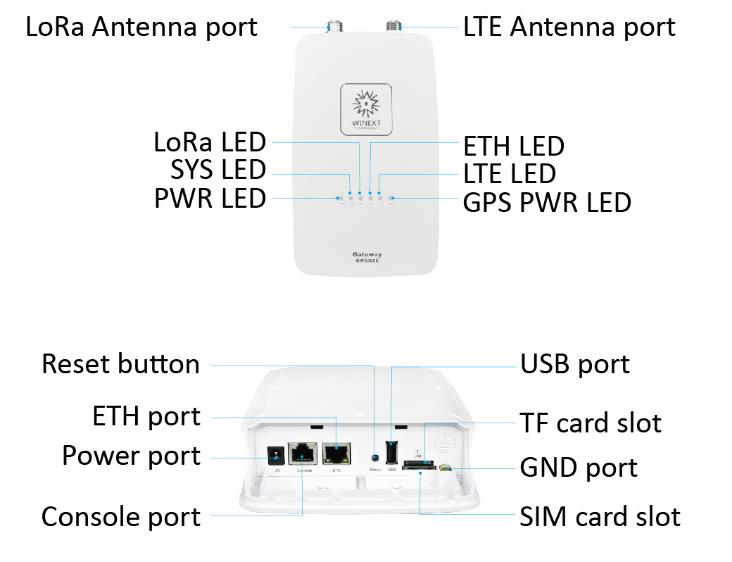

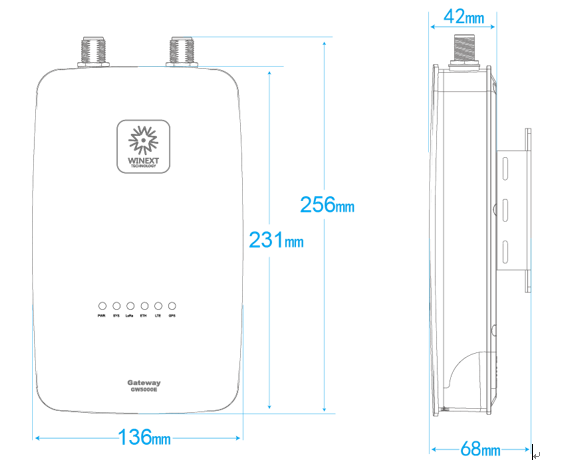

Images and Dimension:
Hardware:
Item | Specifications |
Power | DC9~24V power supply or POE |
Frequency Band | EU863-870/US902-928/AS923/AU915-928/KR920-923/ IN865-867/RU864-870 |
Communication Rate | 292bps~5.4kbps, support SF7~SF12 |
Maximum Transmit power | 30dBm |
Rx Sensitivity | -142dBm@SF12(half duplex) -138dBm@SF12(full duplex) |
Antenna | Omnidirectional; 2/5dBi optional |
Channels | 8 uplink channels and 1 downlink channel |
LTE | EU 4G modules support the following frequency bands: FDD LTE: B1/B3/B5/B8/B20 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
Latin America/Australia/New Zealand 4G modules support the following frequency bands: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B1/B2/B5/B8 GSM/EDGE:B2/B3/B5/B8 | |
U.S. 4G modules 4G module support the following frequency bands: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71B WCDMA: B2/B4/B5 | |
Global Band 4G modules are supported as follows: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 | |
WiFi | 2.4GHz, AP mode Maximum Power: 20dBm |
Data Backhaul | 10/100M Ethernet and 3G/4G |
Debugging Interface | WiFi, WAN, Console port |
Operating Environment | Temperature: -20℃~+65℃ Humidity: 5%~95%RH non-condensing |
Lightning Protection | Class B lightning protection level of GB50343-2004 |
Power Consumption | 4W (normal working) |
Dimension | 231*136*42mm(Body size) |
Software:
Item | Specification |
Core | OpenWrt 23.05 |
Packet Forwarding | Supports UDP(GWMP)/MQTT(GWMP)/built-in NS/WSS (based on Basic Station's CUPS and LNS protocols) |
| Modbus TCP | Up to 5 client access, support function code 03, read the node's temperature, humidity, voltage and other data |
User Interface | User-friendly GUI |
Language | Chinese/English |
IPV6 | 4G supports IPV6, LAN and Wi-Fi provide IPV6 relay function |
3G/4G Dial-up Networking | Qualcomm universal dialing QMI supported |
Local Time Synchronization | NTP client with time setting in different zone supported |
WAN Port Protocol | Static, DHCP Client, PPPoE |
| Firewall | NftableV1.0.9,support customized rule, SYN-flood protection |
Upgrade | Firmware refresh in the WEB interface of gateway, OTA remote upgrade supported |
Local Log Management | TF card save daily communication log, the oldest log will be deleted when the card comes to full |
Remote Management | Send regular reports of gateway status (WAN, 4G, WiFi, LoRa, TF card), support remote issue of configuration parameters, remote upgrade, remote reboot, remote maintenance |
