CM100-BT LoRaWAN Personnel Positioning Badge
Description
The CM100-BT LoRaWAN Personnel Positioning Badge operates on the standard LoRaWAN protocol and incorporates Bluetooth beacon positioning technology, coupled with an integrated accelerometer. It is capable of periodically uploading personnel location data to the management platform. The badge also features an SOS emergency one-touch alarm function, allowing users to report their current location in case of an emergency. Equipped with a rechargeable built-in lithium battery, the badge is designed for repeated use.
CM100-BT boasts small size, low power consumption, and user-friendly operation. It is ideally suited for a variety of applications including attendance management in hospitals,schools and enterprises, visitor supervision, and environmental inspection patrols.
Features
Ø Supports LoRaWAN protocol;
Ø Supports Bluetooth beacon positioning with an accuracy of 5 to 10 meters；
Ø Timed location uploads via LoRa；
Ø Built-in accelerometer for displacement monitoring；
Ø Built-in lithium battery, support magnetic charging；
Ø SOS Alarm.

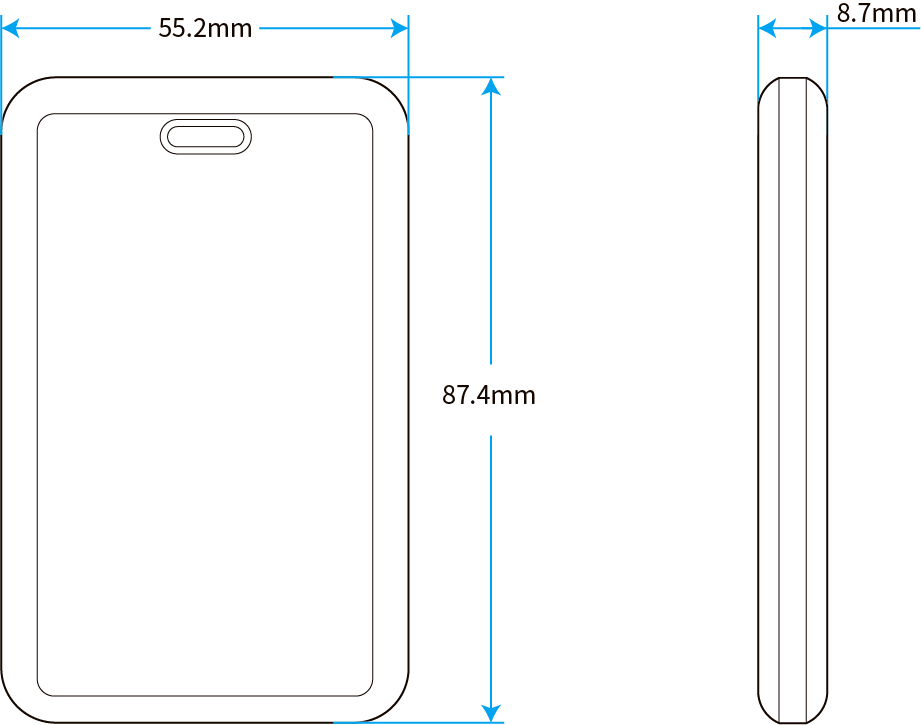

Dimension:

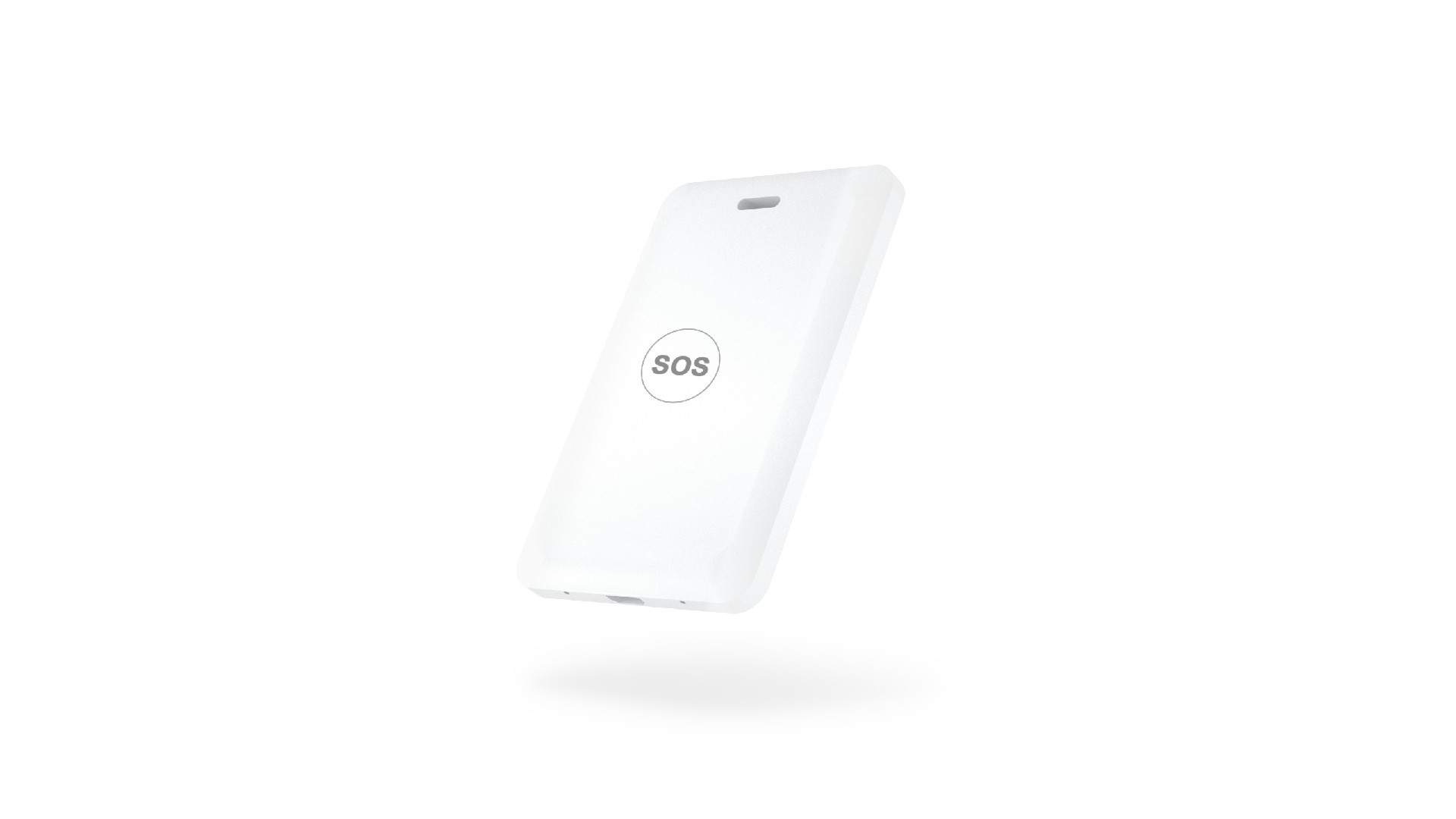

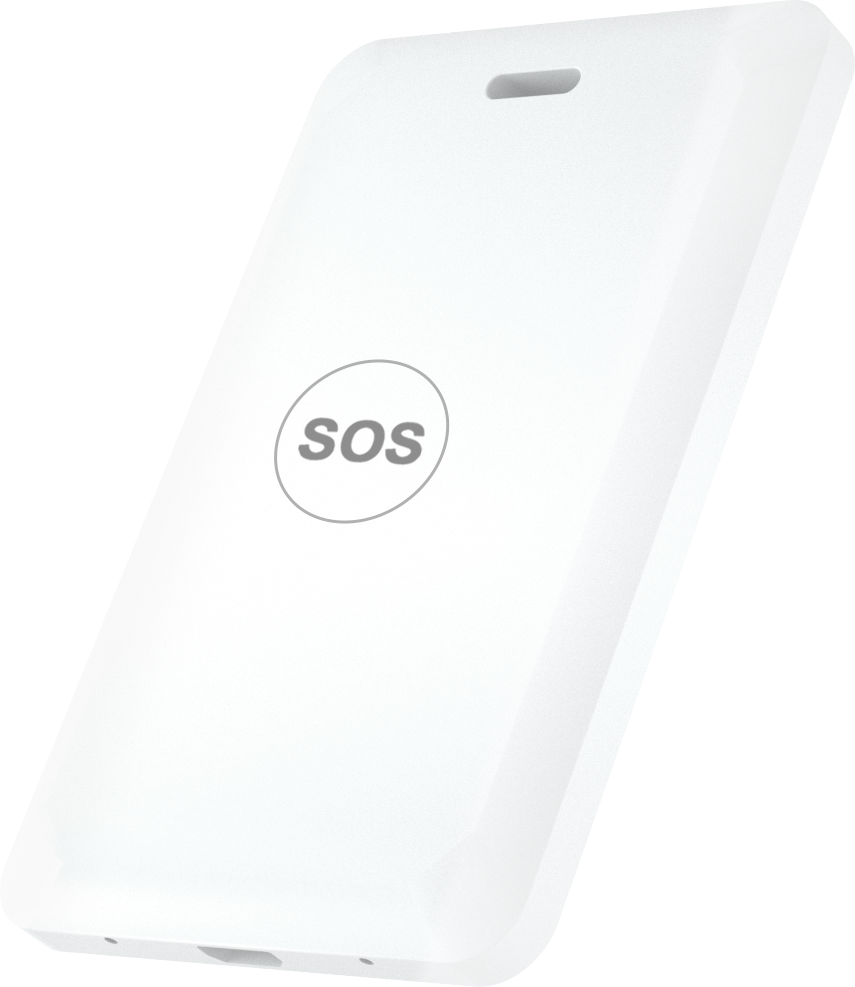

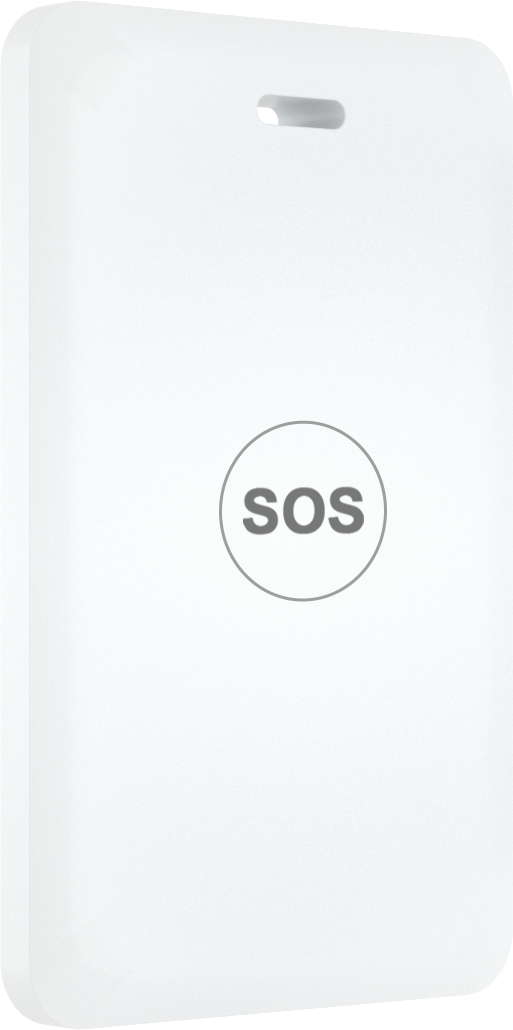

Images
parameter
Items | Parameters | Performance Indicator |
Sensors | Sensor Type | Built-in accelerometer sensor, Bluetooth chip |
Positioning Accuracy | 5~10 meters | |
Bluetooth TX Power | -4dBm | |
Bluetooth Rx sensitivity | -96dBm | |
LoRa | Data TX Rate | 300bps～5.4Kbps |
Operating Frequency | CN470MHz～510MHz | |
Max Tx power | 20dBm | |
Rx Sensitivity | -141dBm（SF12） | |
Working Environment | Operating Temperature | 0℃～50℃ |
Operating Humidity | 10%～95% | |
Power Supply | Battery Type | Lithium battery |
Battery Spec. | 4.2V/900mAh（rechargeable） | |
Others | Dimension | 87.4mm*55.2mm*8.7mm |
IP Rate | IP65 |
