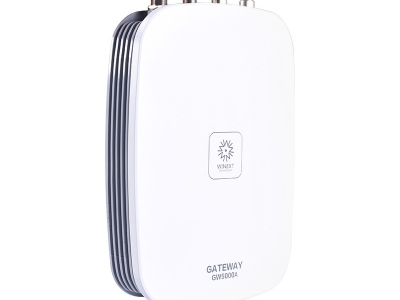

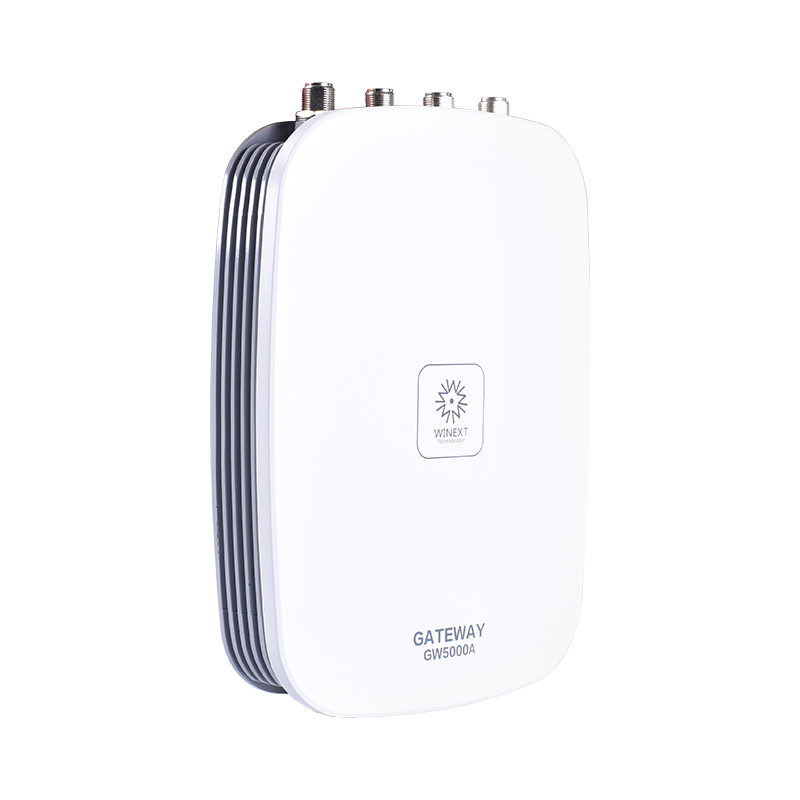

Industrial-grade gateway GW5000A：
Winext Technology have launched the IoT base station gateway GW5000A based on low power LoRaWAN protocol, which can provide low power, mobile and safe local bidirectional communication service for IoT devices. LoRaWAN can simplify the interconnection of device, user and network, as well as provide standard.
GW5000A is designed to be used in long range star network architectures; it can achieve message delivery between front-end device and central network server. GW5000A is connected to the network server via standard IP connections while front-end devices use single-hop wireless communication to one or many GW5000A gateways.
The communication between front-end devices and GW5000A is established by different channels and data rate, which can be negotiated in advance. In order to save the battery life, GW5000A can maximize the power saving by implementing ADR (Adaptive Date Rate). With our IoT technology and our base station gateway GW5000A, users can then have their own IoT control system to achieve customized smart services, which will be widely applied in the fields of smart parking, smart fire-fighting, energy management, asset tracking, smart grid, industry 4.0, smart agriculture and ect in the future.
Highlights:
* EU, US,and Asia frequency support
* LoRaWAN compliant
* CE/FCC certified
* IP67
Parameters :
Technical parameter | CPU | Industrial level CPU |
Linux system | ||
Wireless parameter | LoRa data rate | 300bps～5.4Kbps |
Ethernet communication rate | 100Mbps | |
LTE communication rate | 50Mbps | |
Working frequency | CN470~510MHz EU863~870MHz; AS920~925MHz; AU915~928MHz; KR920~923MHz; RU864~870MHz IN865-867MHz | |
Max transmitted power | 25dbm | |
Rx sensitivity | -141dBm | |
Channels | 9 settable channels（8 channels with the band width of 125KHz, adaptive data rate, support spreading factor of SF7~SF12, a 250KHz/500KHz high speed channel) | |
Communication interface | 1xLAN ，1xWAN， | |
Electrical specification | Input | POE power supply with 48V input（24~48V） |
Working temperature | -30℃～65℃ | |
Working humidity | 5%～95%（no condensing） | |
Physical parameter | IP grade | IP67 |
Dimension | 288mm*215mm*59mm | |
Installation | Wall-mounted or with holding rod | |
Certificate | CE/FCC | |
Thunder protection | optional |

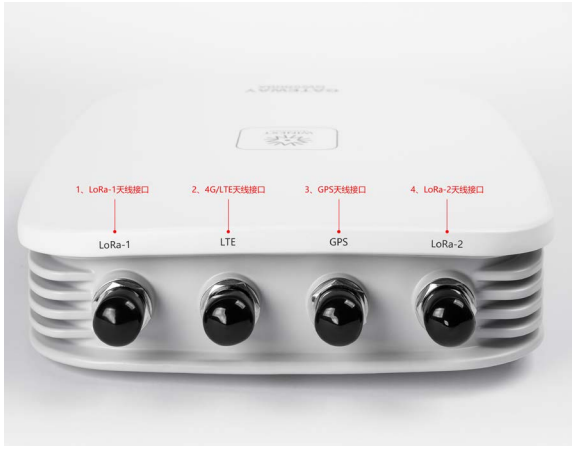

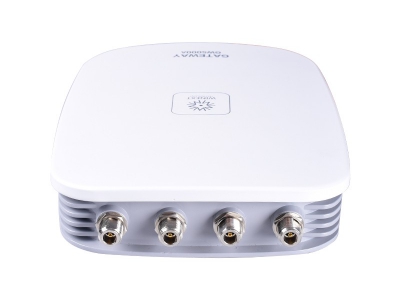

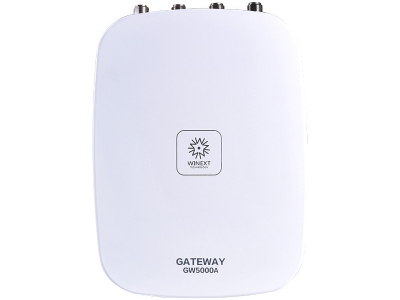

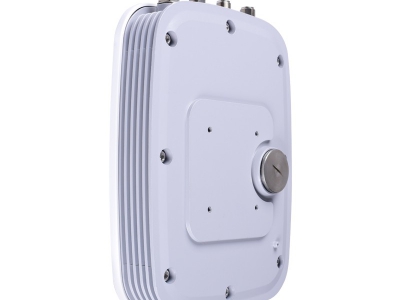

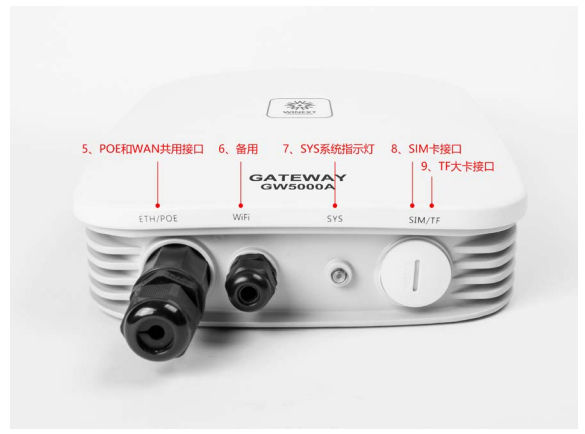

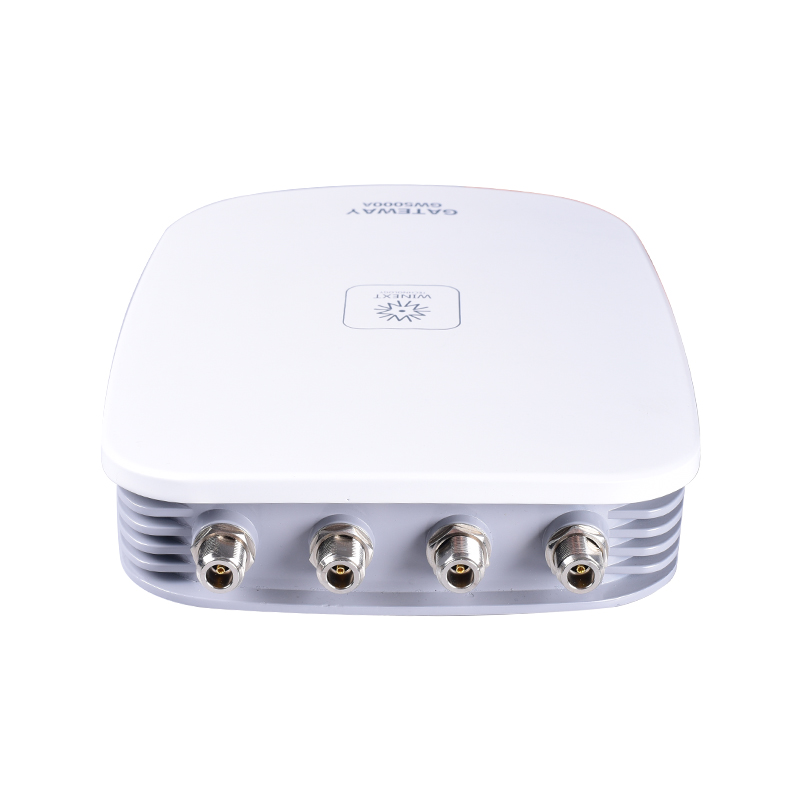

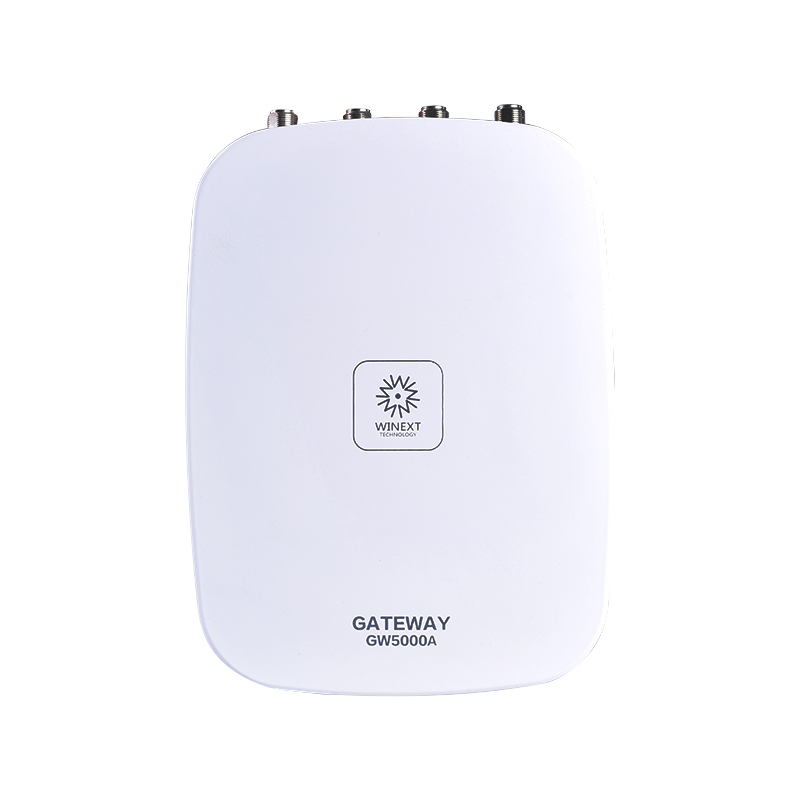

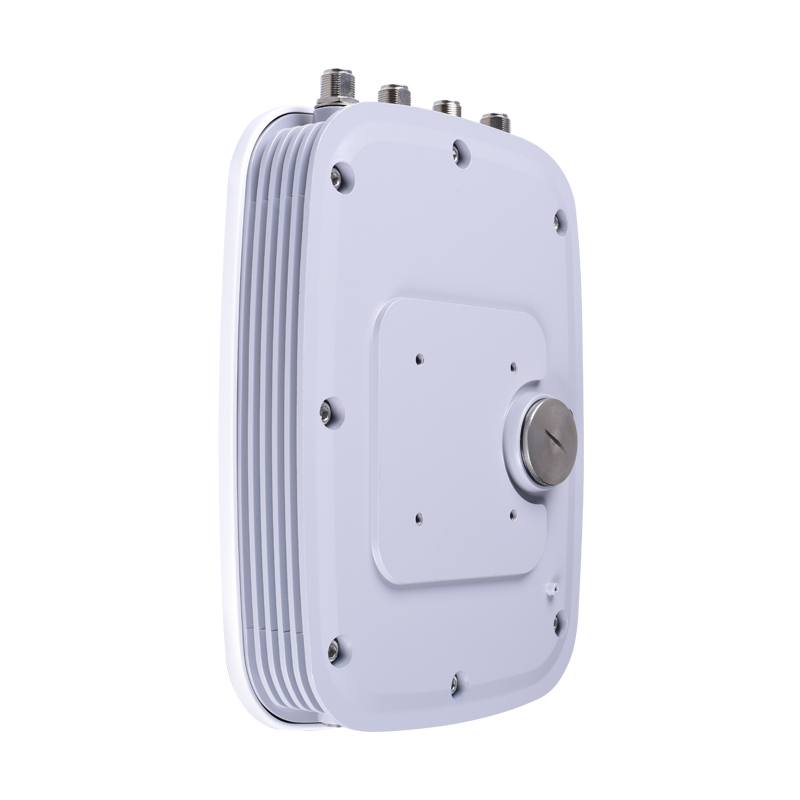

Images:
