LoRa PIR motion sensor AN-304C

AN-304C is a wireless infrared alarm. When an intruder passes through the monitoring area and moves dynamically, an alarm signal will be sent to the monitoring platform immediately. Users can perform real-time management with this device. It is suitable for the security of family residential, villa, workshop, market, warehouse, office building and etc.

Model : AN-304C
Frequency band : EU868/US915/AS923/AU915/RU864-870MHz/IN865-867MHz/KR920-923
Brand : Winext
Dimension : 86*86*26mm

LoRaWAN PIR motion sensor AN-304C for smart building, smart campus, smart home:




  AN-304C is a wireless infrared alarm. When an intruder passes through the monitoring area and moves dynamically, an alarm signal will be sent to the monitoring platform immediately. Users can perform real-time management with this device. It is suitable for the security of family residential, villa, workshop, market, warehouse, office building and etc.



       Product Features:





² Support LoRaWANTM

² Support wireless remote real time alarm

² Ceiling-mounted or wall-mounted installation

² Detecting distance 8-10m

² Support anti-dismantle alarm

² Support low power alarm

² Support status report

² Built-in battery with 5 years lifespan

² Working temperature: -10°C55°C




Product parameters:


Item

Description

Antenna

Built-in LoRa Antenna

Tx rate

300bps-5.4Kbps

Frequency optional

CN470-510MHz

EU863-870MHz

US902-928MHz

AS923MHz

AU915-928MHz

KR920-923MHz

Maximum Tx power

19dBm

Rx sensitivity

-140dBm(SF=12)

Detecting range

8-10m

Detecting angle

100 degree

Installation height

1.5m~2.0m

Working temperature

-10℃- +50℃

Working humidity

5%-95% (no condensing)

Battery type

Built-in Li-SOCL2

Standby electric current

<=15uA

Tx current

<=120mA

Dimension

86*86*26mm

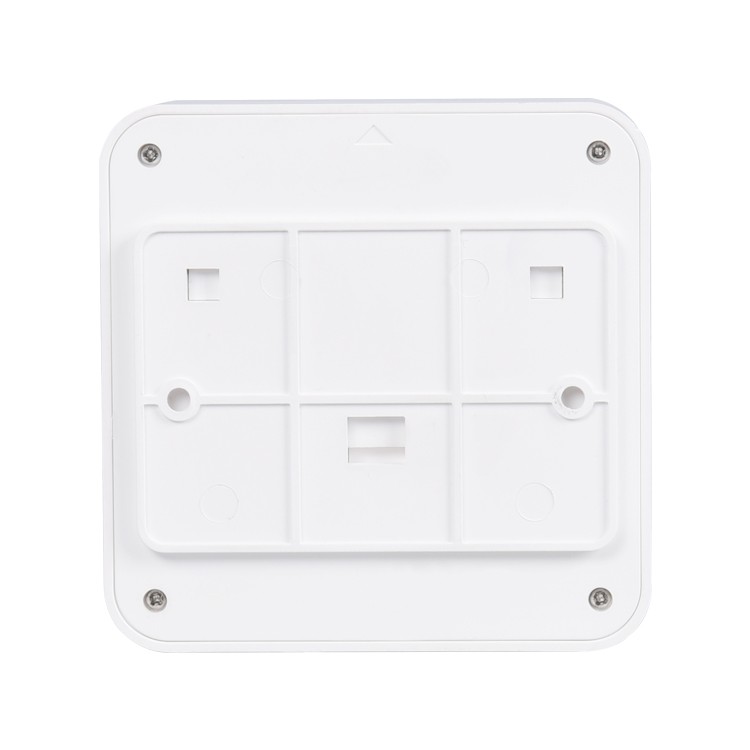

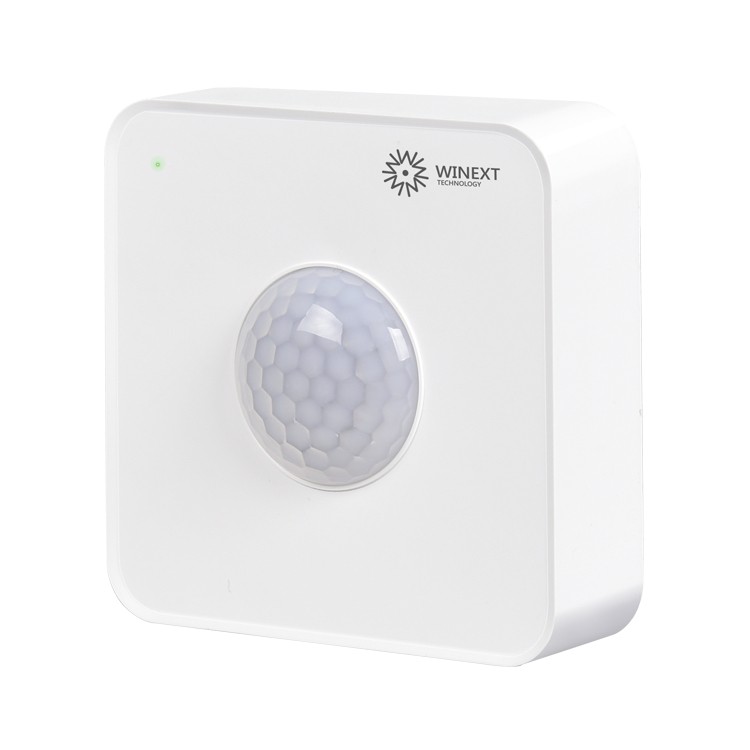

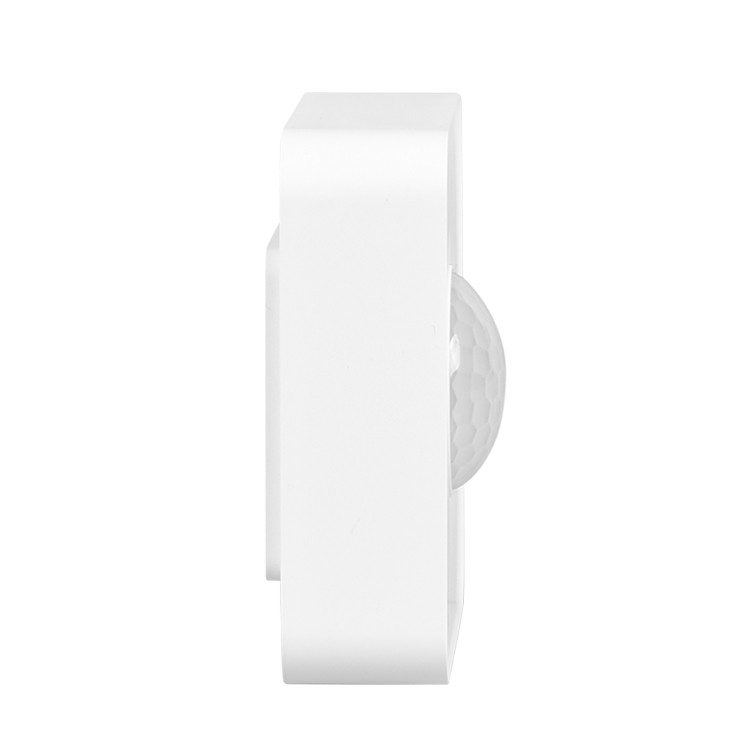

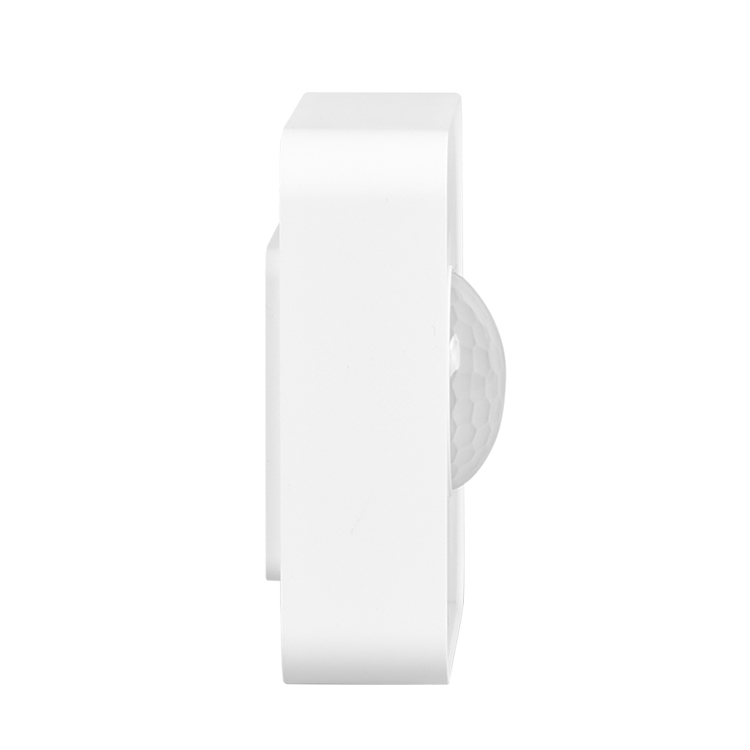

 Images and dimension:
