Carrier-grade 16-channel gateway
Description
In order to meet the growing market demand of Internet of Things, Winext Technology has launched GW-EN8016 LoRa edge gateway with 16 channels. Customers can use the built-in LoRa network server to parse the LoRa data and the Third-party platform can get and display the parsed LoRa data by MQTT message subscribing. Moreover, they can use their own LoRa network server to parse the LoRa data from the gateway. GW-EN8016 adopts industrial-grade CPU and power supply via POE to provide network coverage services for city-level IoT applications.
Features:
Ø support 16-channel, greatly increase the data concurrency, expand the node access
Ø standard LoRaWANTM protocol, support LoRaWANTM class A/B/C
Ø support FDD half duplex (high frequency) and full-duplex (low frequency) communication, can be selected according to need, flexible and convenient
Ø support extended TDD/FDD FSK channel at a high speed

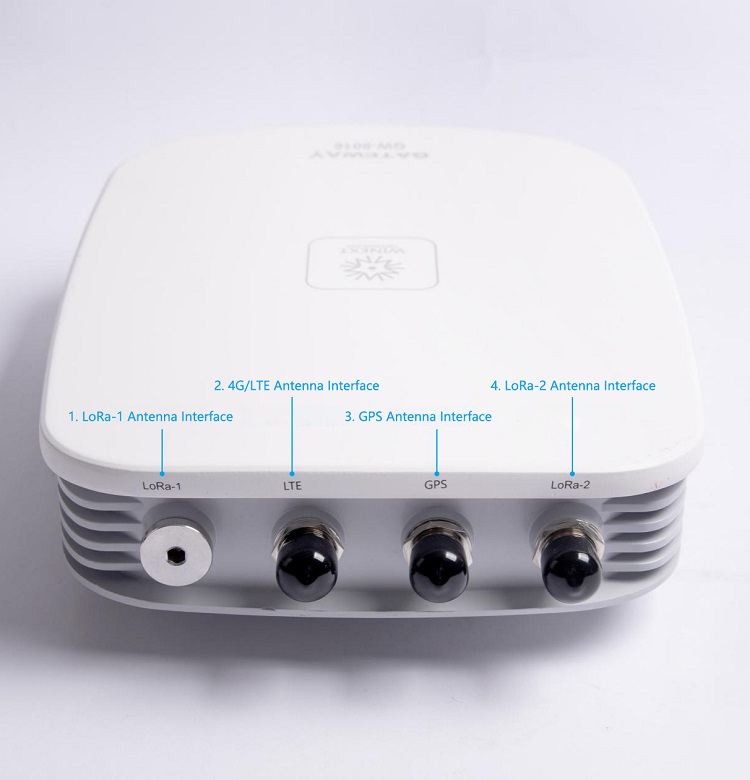

Ø support WiFi/GPS/LTE/LoRa communication interface
Ø intelligent switch support data communication, backhaul via WAN and 4G, give priority to use WAN, WAN automatic switching of 4G if there is problem with WAN.
Ø support 4G re-dialing function, guarantee the reliability of the network
Ø support remote command downlink, self-diagnosis, self-repair, remote system upgrade
Ø support remote downlink of configuration parameters

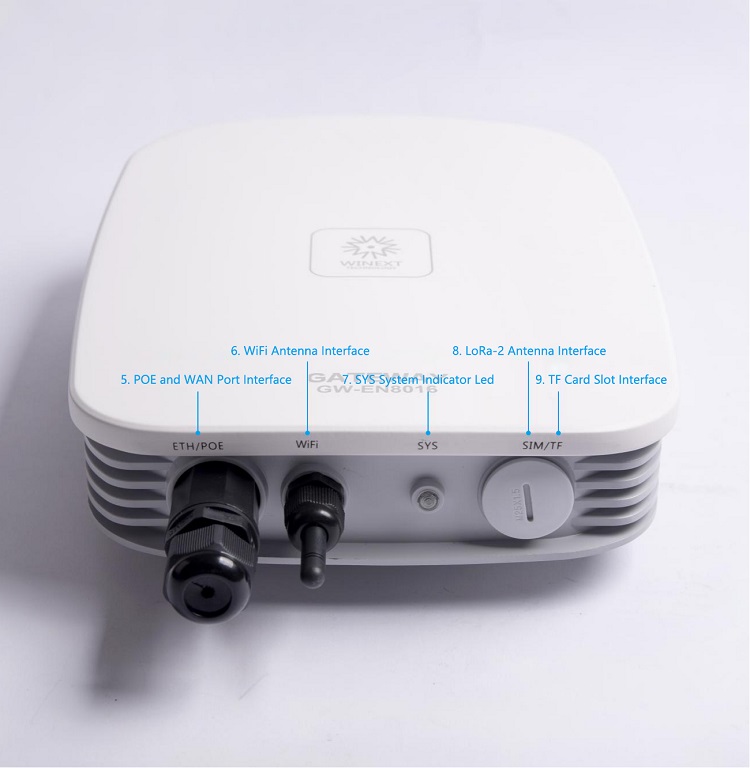

Ø supports IEEE 802.3 AT/AF POE power supply, standard power supply interface
Ø Aluminium case, IP67 protection, work temperature: - 40 ℃ ~ + 80 ℃, humidity: 5% ~ 95%
Ø GB50343-2004 in conformity with the provisions of lightning protection grade B level

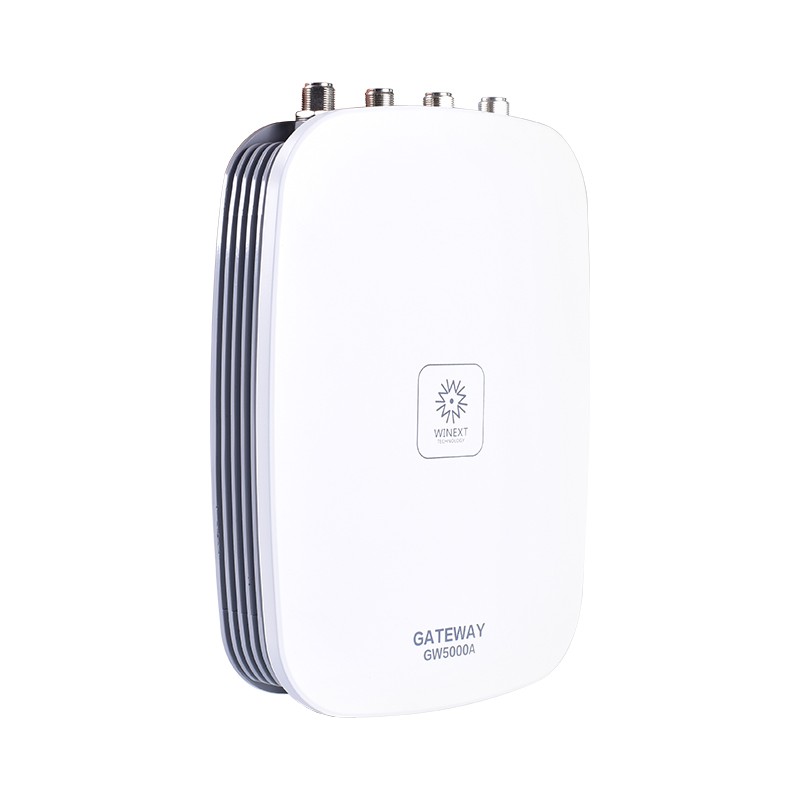

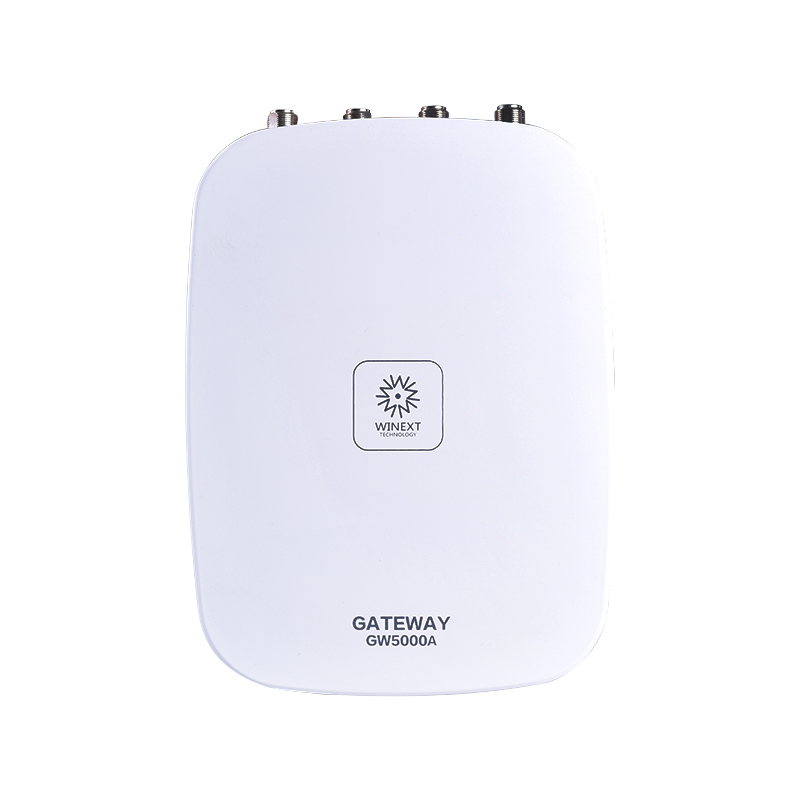

Images:
parameter
Description | Parameter |
Power supply | IEEE 802.3AT/AF POE 48V |
POE UPS back up battery optional, support storage battery and solar power supply | |
Frequency optional | CN470MHz~510MHz |
EU863MHz~870MHz | |
US902MHz~928MHz | |
AU915MHz~928MHz | |
AS923MHz; RU864-870MHz; IN865-867MHz | |
Data transmission rate | 292bps～5.4Kbps |
Max Tx power | 27dBm |
Rx sensitivity | -142dBm(SF=12, half-duplex); -138dBm(SF=12, duplex) |
LoRa antenna | Fiber glass( 2dBi, 5dBi optional or customized) |
Channel | Max 16 channels (uplink), downlink 2 channels (downlink) |
LoRa working mode | Duplex/ Half-duplex |
Timing method station | GPS; Ethernet; Cellular network |
Working temperature | -40℃~+80℃ |
LTE mode | LTE Module for Europe FDD LTE: B1/B3/B5/B8/B20 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
LTE Module for U.S.A FDD LTE:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 | |
WiFi | 2.4GHz, AP mode Max power: 18dBm |
Data backhaul | 10/100M Ethernet, 3G/4G |
Debugging port | WiFi, LAN, Serial port |
Waterproof grade | IP67 |
Working temperature | -40℃～+70℃ |
Working humidity | 5%~95%RH (no condensing) |

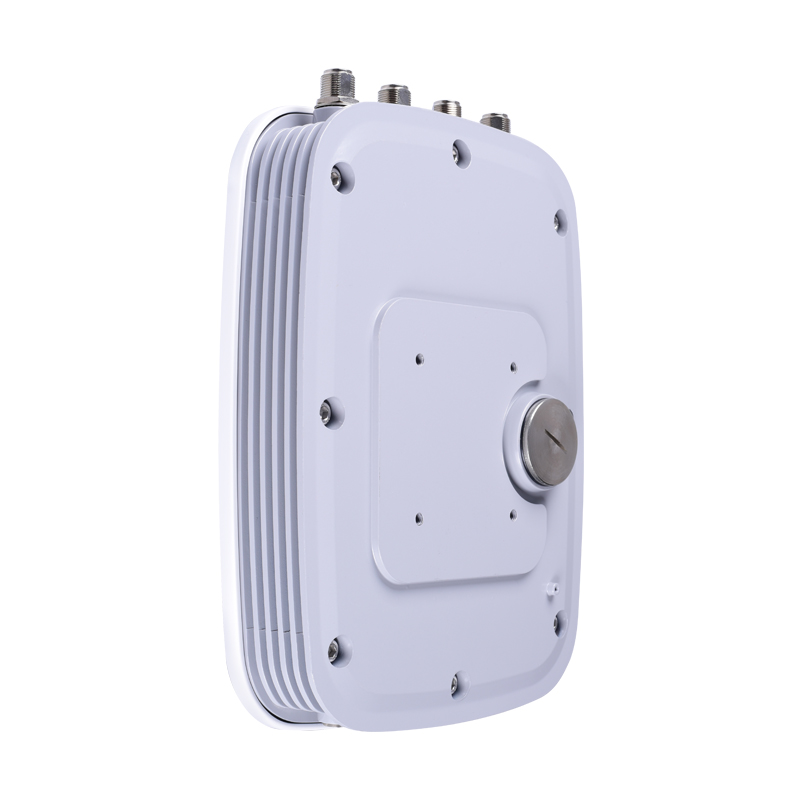

Installation method | Pod-installation, wall-mounted LoRa antenna |
Lightning protection | Regulation GB50343-2004 B grade |
Power consumption | < 10W |
Weight | 2.9 kgs (Main body) |
Dimension | 288mm*215mm*59mm(Main body) |
