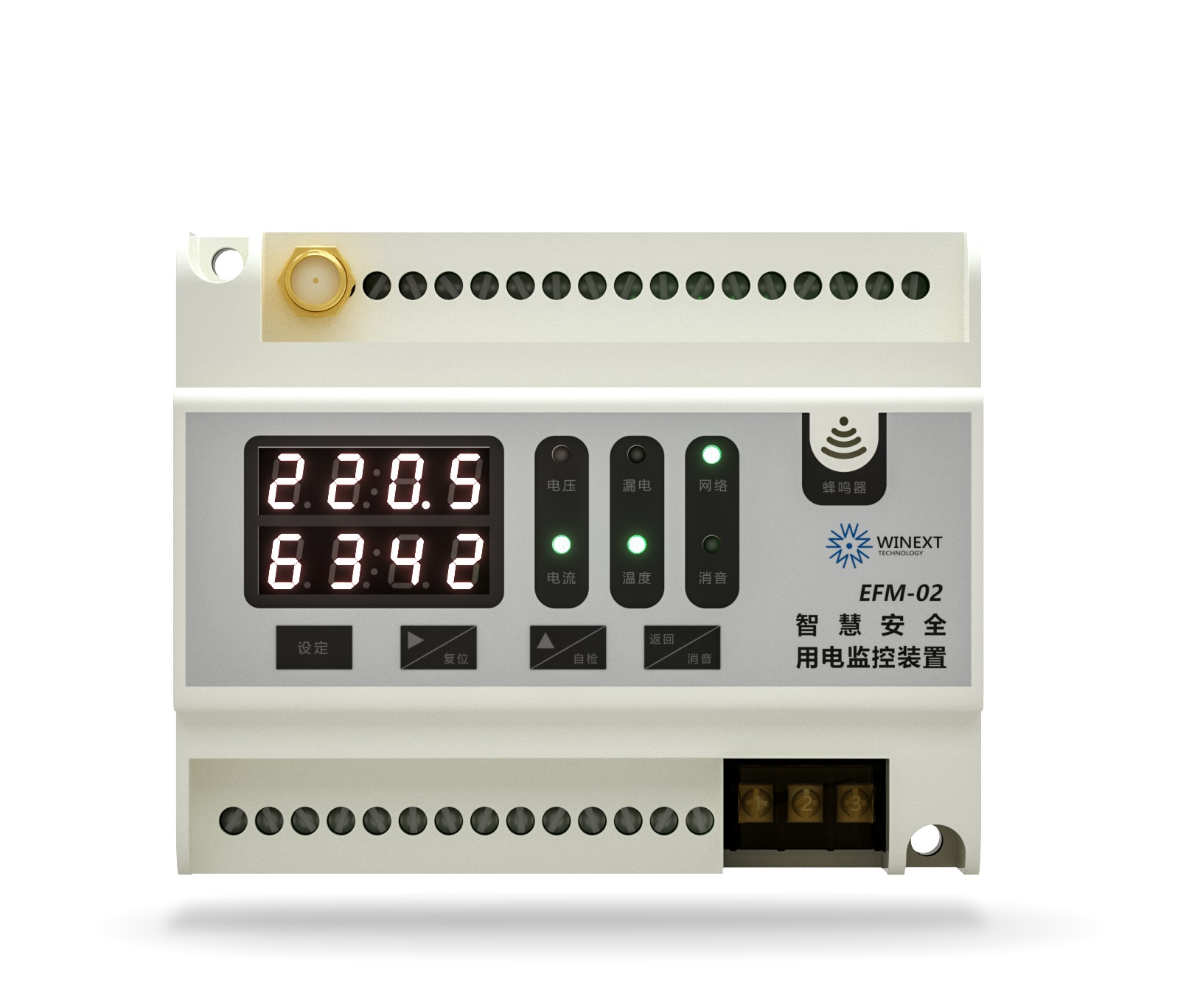

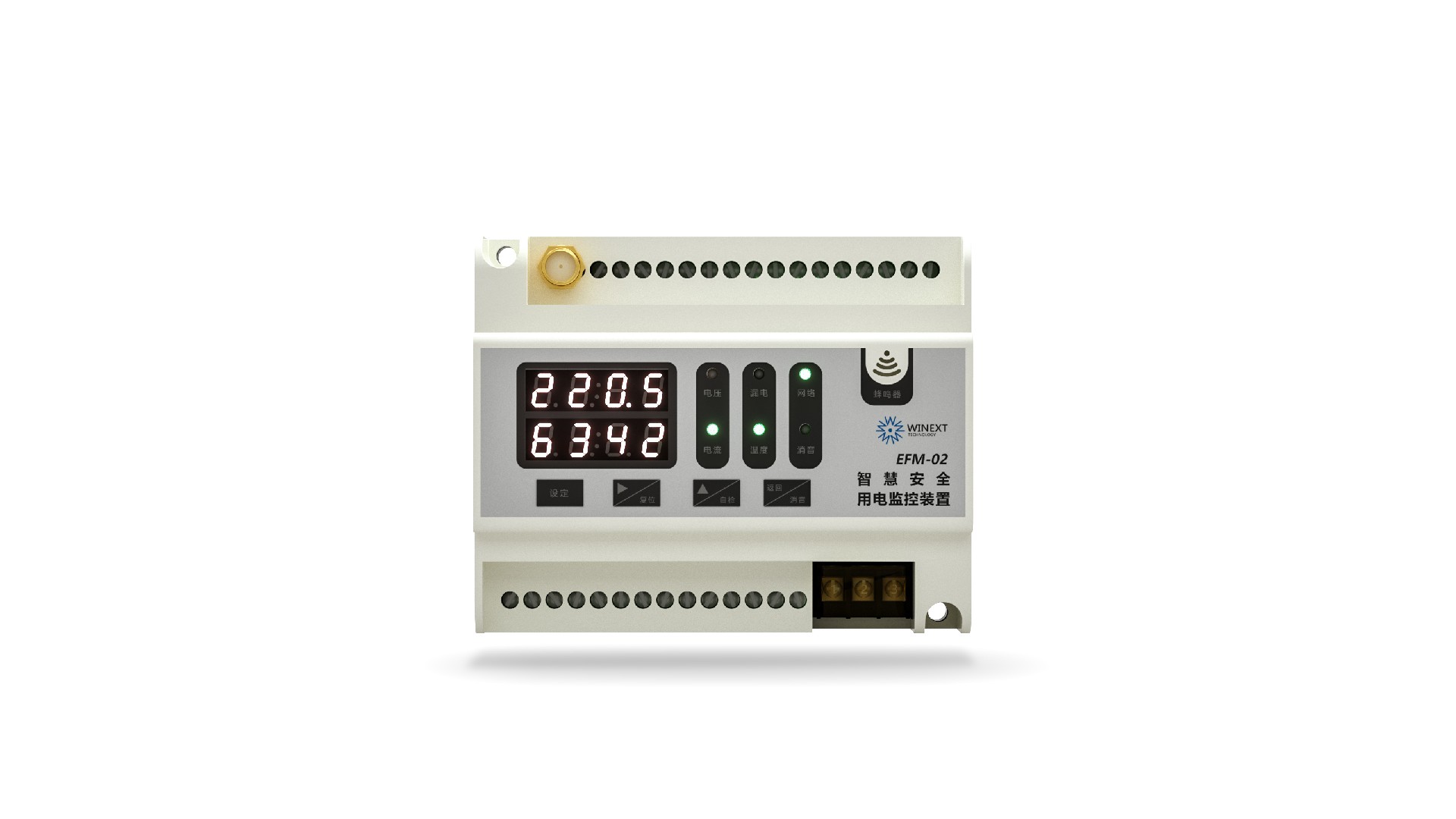

LoRaWAN Smart Electricity Safety Monitor
Description
The EFM-02 Smart Electricity Safety Monitor is an intelligent monitoring device based on LoRaWAN technology, specifically designed for remote surveillance of electrical circuits. Capable of real-time monitoring and recording of critical safety parameters of the electrical circuit, such as residual current, temperature, power,current intensity, and voltage, the device uploads this data to a cloud platform. Utilizing advanced data analysis techniques, the cloud platform performs a comprehensive diagnosis of potential electrical safety hazards and issues timely alerts for conditions like electrical leakage, overload, or short circuits. This effectively prevents electrical fires and ensures the safety of electrical usage.
Features
Ø Supports LoRaWAN protocol;
Ø Working Frequency: CN470~510MHZ/EU863~870MHZ/US902~928 MHZ/AS923,etc.(Optional)；
Ø Configurable alarm threshold values for voltage, current, and temperature;
Ø Supports monitoring of residual current, temperature, and current status;
Ø Supports wireless remote configuration, control, firmware updates, and status inquiries;
Ø Equipped with a display screen and functional buttons;
Ø Flame-retardant housing.

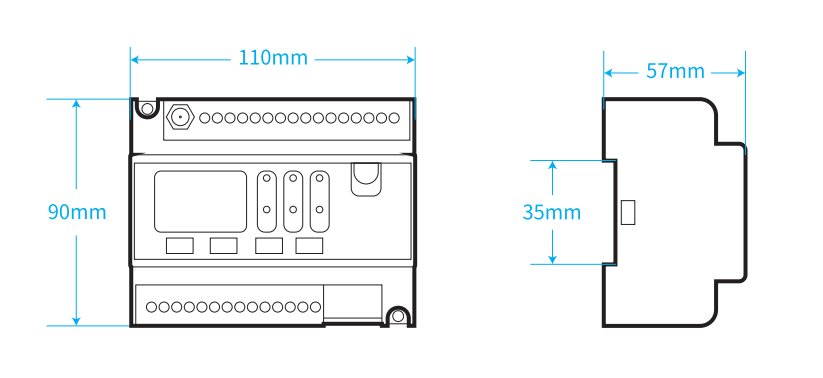

Dimension
(unit:mm)
parameter
Items | Performance Indicator |
Power supply | Rated voltage AC220V |
Power Consumption | Normal monitoring state≤2W，Alarm state≤2.5W |
Monitoring and Alarm | Over voltage（115％）（Monitor AC 220V） |
Under voltage（80％）（Monitor AC 220V） | |
Over voltage（115％）（Monitor AC 380V） | |
Under voltage（80％）（Monitor AC 380V） | |
Over current （1～1000A） | |
Residual current（50～1000mA） | |
temperature（5～150℃） | |
Accuracy | Class 1 |
Switch Output | Relay passive output |
Contact Capacity | AC22OV/3A,DC30V/3A |
Interfaces | LoRa , CAN bus communication |
Effective communication range | ≤1km |
Installation | Rail Mounting or Panel Kit installation |
Operating Temperature | -10°C~+55℃ |
Standard | GB 14287.2-2014 |
