LoRaWAN Wireless Temperature and Vibration Sensor

Description

The EX-301 Wireless LoRaWAN Temperature and Vibration Monitoring Unit is a high-performance device that offers simultaneous measurement and monitoring of the vibration and temperature of target objects. Equipped with advanced intelligent analysis algorithms, it not only collects raw acceleration data but also accurately records the time and duration of peak acceleration events.

Designed with low power consumption in mind, the unit can operate reliably for extended periods on battery power, reducing maintenance costs and frequency. Its housing is made of high-strength alloy material with explosion-proof capabilities, making it suitable for harsh industrial environments with high temperatures and intense vibrations.

Widely applicable across industries such as chemical, metallurgical, power generation, and mechanical manufacturing, the monitoring unit is ideal for online monitoring of vibration and surface temperature in critical equipment like pipelines, generators, air compressors, and pumps. With real-time data monitoring and intelligent analysis, EX-301 provides robust support for the health management and predictive maintenance of industrial equipment.

Features

Ø Supports LoRaWAN protocol;

Ø Built-in 8500mAH battery；

Ø Velocity Measurement Range : 0.1-199.9mm/s;

Ø Displacement Measurement Range : 0.01-1.99mm/s;

      Ø  Frequency Response Range:＜1000Hz

Ø Accuracy:±10%@100Hz;

Ø Temperature Measurement Range: -40~125 ℃;

Ø Temperature Accuracy: ±0.1℃ (At stable temperature conditions);

Ø Explosion-proof design;

Ø Ultra low power consumption;

Ø  Mounting Type: Bolt, Magnetic.

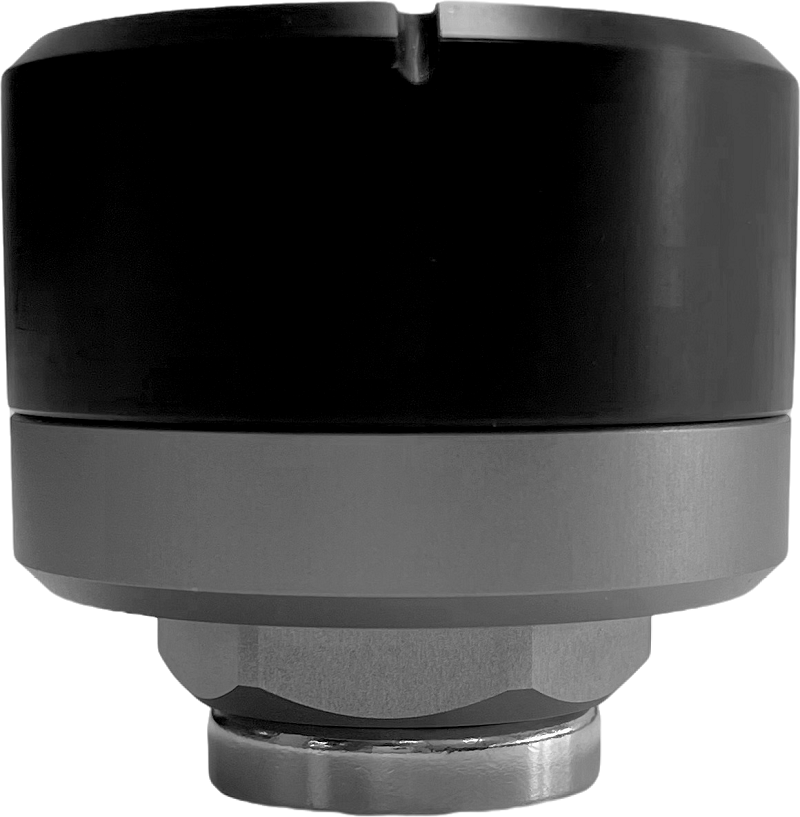

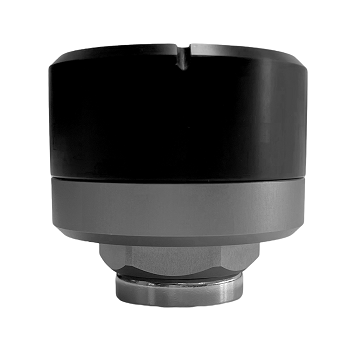

Product Image

parameter
