6-in-1 LoRaWAN Air Quality Monitor
Description

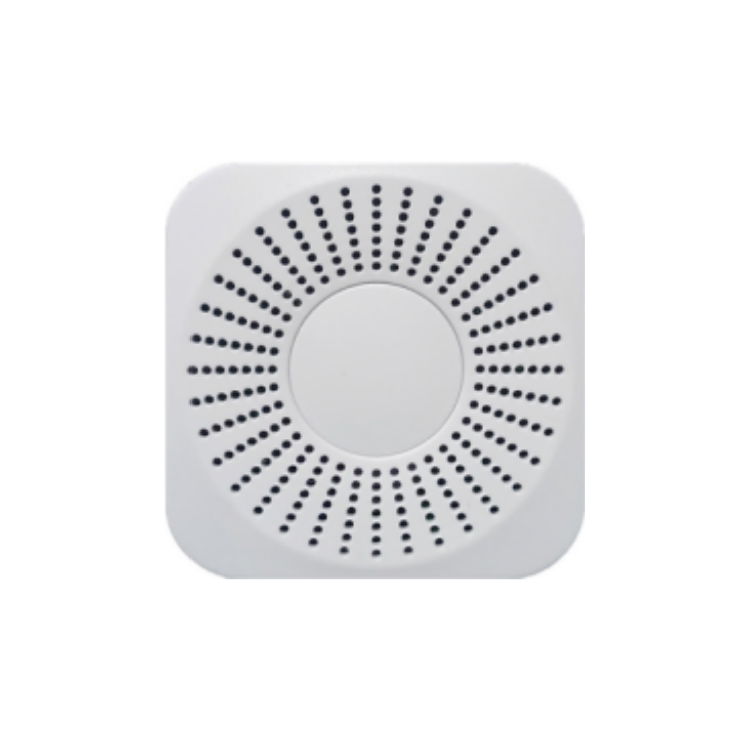

The CU606 Indoor 6-in-1 Environmental Monitoring Sensor is an air quality detector developed based on the standard LoRaWAN protocol. This device integrates a variety of sensors to monitor PM2.5 (fine particulate matter), TVOC (Total Volatile Organic Compounds), HCHO (formaldehyde), CO2 (carbon dioxide), temperature, and humidity. It periodically transmits monitoring data to the control platform, enabling management personnel to stay updated with real-time environmental changes.
Features
Ø Supports LoRaWAN protocol;
Ø Utilizes high-precision sensors for diverse monitoring capabilities;
Ø Long communication range: Up to 2 kilometers in line-of-sight open spaces;
Ø Good compatibility: Compatible with standard LoRaWAN gateways and third-party network server platforms;
Ø Supports Temperature and humidity, CO2, formaldehyde, PM2.5, TVOC data monitoring.

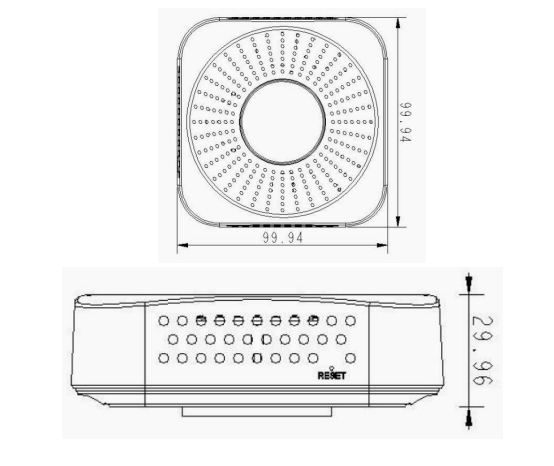

Dimension
Parameters
Items | Performance Indicator | |
Sensors | Monitoring Parameters | PM2.5 (fine particulate matter) |
CO2 (carbon dioxide) | ||
TVOC (Total Volatile Organic Compounds) | ||
HCHO (formaldehyde) | ||
Temperature | ||
Humidity | ||
Wireless | LoRa Tx Rate | 292bps~5.4kbps (SF7~SF12 ) |
Frequency Band | CN470MHz~510MHz/EU863MHz~870MHz/AU915 MHz~928 MHz/AS923/US902MHz~928MHz, (optional) | |
Max Tx power | 19dBm | |
Max Rx Sensitivity | -141dBm（SF=12） | |
Lora Antenna | Built-in omni-directional antenna | |
Working Environment | Operating Temperature | -10℃～55℃ |
Operating Humidity | 0%~95%RH (Non-condensing) | |
Others | Mounting Type | Wall-mounted, Ceiling-mounted |
Material | ABS | |
Power supply | DC 24V(supports: 10~30V) | |
Dimension | 99.94mm*99.94mm*29.96mm | |
Measurement Range and Accuracy
Items | Measurement Range | Accuracy |
PM2.5 | 0～1000 ug/m3 | ±10μg/m³±10% |
CO2 | 400～5000ppm | ±50ppm+3%FS |
TVOC | 0～5 mg/m3 | ±10% |
HCHO | 0～1.5 mg/m3 | ±10μg/m³±10%FS |
Temperature | -10～50℃ | ±0.5℃@25℃ |
Humidity | 0～99%RH | ±3%RH@60%rh,25℃ |
