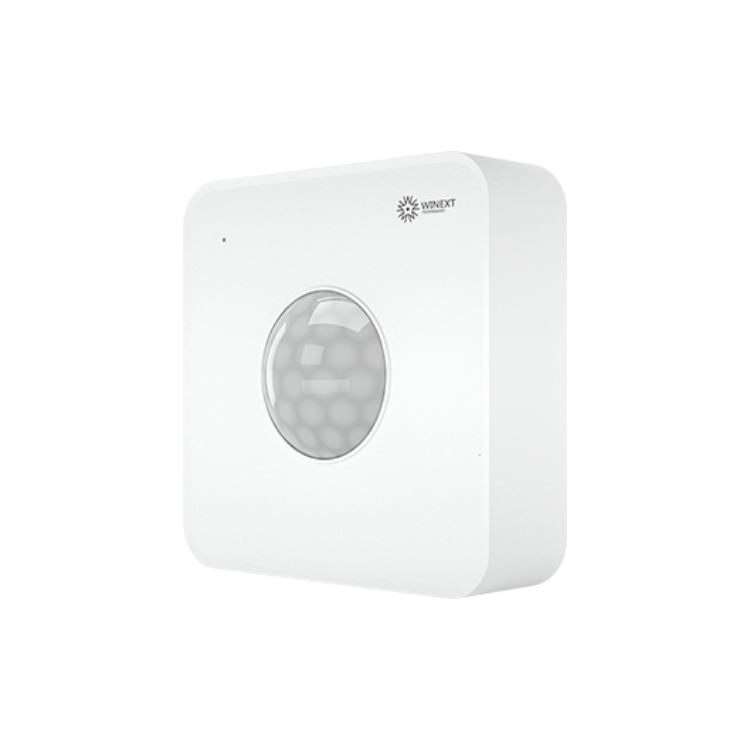

LoRaWAN Illuminance Sensor AN308

AN308 is an advanced wireless illuminance sensor based on LoRa technology, featuring low-power sleep-wake functionality and excellent battery life,its unique photometric technology ensures high linearity and precise measurement in low light ranges, making it particularly suitable for indoor and obstructed environments.

Model : AN308
Frequency band : EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz
Brand : Winext
Dimension :

AN308 is an advanced wireless illuminance sensor based on LoRa technology, featuring low-power sleep-wake functionality and excellent battery life, simplifying the installation process with the convenience of wire-free deployment. Its unique photometric technology ensures high linearity and precise measurement in low light ranges, making it particularly suitable for indoor and obstructed environments.



With LoRa technology's high anti-interference capabilities, long communication range, and strong penetration power, it is an ideal choice for IoT environmental monitoring in various fields such as agricultural greenhouses, smart breeding, smart homes, smart buildings, smart transportation, and industrial monitoring.


Features

Ø Supports LoRaWAN protocol;

Ø Supports tamper-proof alarms and low-voltage detection;

Ø Supports P2P wireless configuration;

ØBuilt-in 4000mAh battery;

ØMeasurement Range: 0~65535LUX;

ØAccuracy: ±7%.

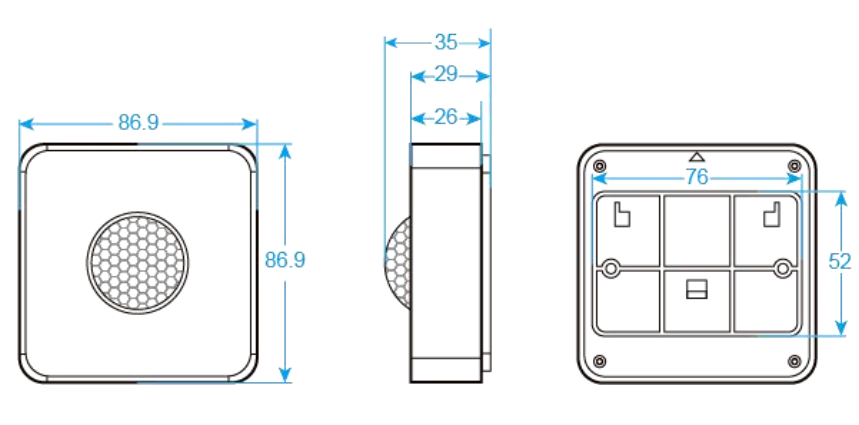

Dimension

 (unit:mm)


35a745c62f7d11efb20a00163e02a1b7 (1).png

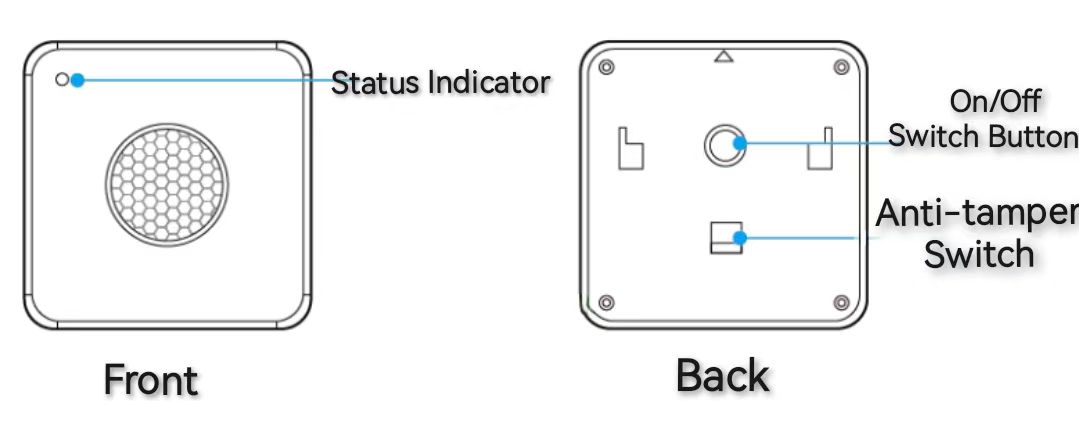

Usage Instructions


35a745c62f7d11efb20a00163e02a1b7 (2).png

① Power On: Press and hold the power button until the green light comes on and then goes off.

                         Release the power button after it goes off;



② Power Off: Press and hold the button for more than 3 seconds until the red light comes on and then goes off.

                         Release the power button after it goes off;



③ Network Registration: After powering on, the terminal will flash the green light once when it successfully registers

                                          on the network and begins sending data.

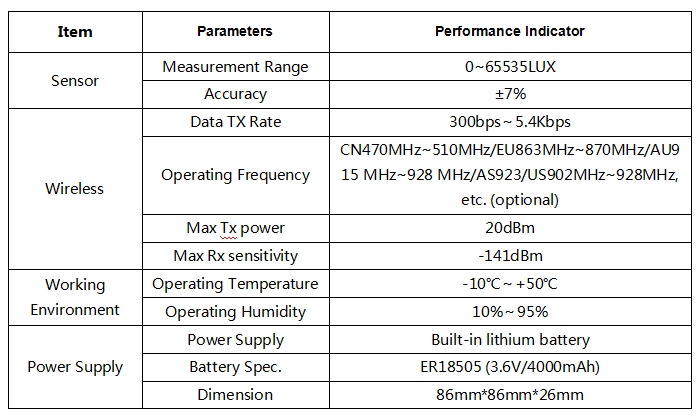

parameter
