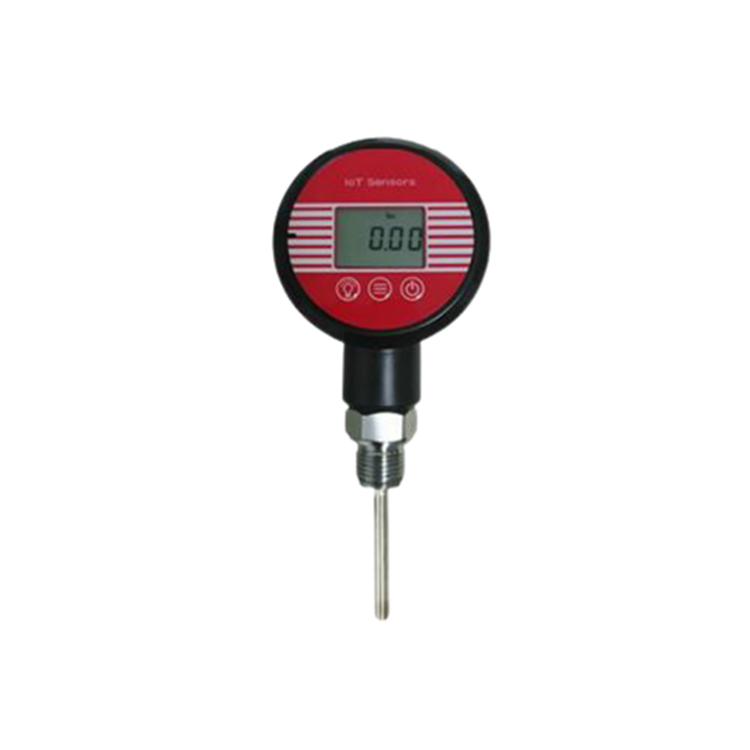

LoRa Wireless Temperature Monitoring Sensor CU203

CU203 wireless temperature monitoring sensor is a digital display pressure/liquid level temperature sensor. LCD ready-made display, 360-degree rotation, IP66 protection level, two removable 19000mAh batteries, application scope: smart city, smart fire protection, smart factory, various pipe network engineering networking.

Model : CU203
Frequency band : Frequency band : EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz
Brand : Winext
Dimension :


Features:

  • Water temperature measurement range: 0°C~250°C (optional)


  • Ultra-Low Power Microprocessor Design


  • 19000mAh large-capacity battery, super long standby time


  • LCD liquid crystal display, 360 degree rotation


wireless performance:

  • Working frequency: CN470MHz


  • data transfer rate: 300bps-5.4Kbps


  • Maximum transmit power: 25db


  • Receiver sensitivity:-150dBm (SF12)


Electrical Specifications:

  • Operating Voltage: 3.6V DC


  • battery capacity: Two 19000mAh


  • Sleep current:<30uA


  • send current:<140mA


  • receive current:<15mA


product specification:

  • threaded interface: M20*1.5 G1/2 etc.


  • degree of protection: IP66
