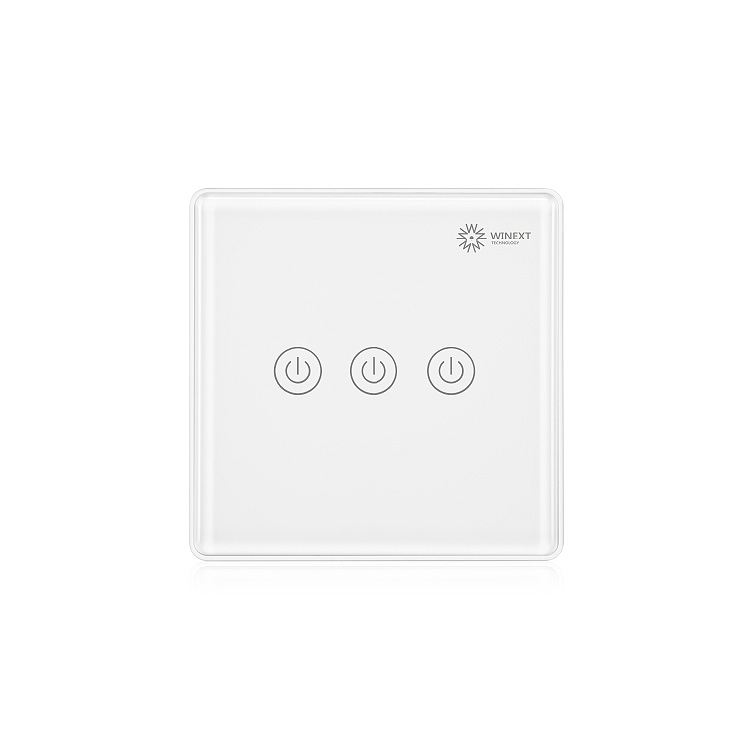

LoRa Central air conditioning panel CU802

CU802 central air-conditioning panel is a new generation of LoRaWAN terminal equipment developed by Winext. This series of products can be easily connected to various LoRaWAN® gateways and cloud servers. The air conditioner panel has the characteristics of local air conditioner status reporting, remote unified control, remote group control, remote one-to-one control, Modbus RTU protocol data, etc. Users can manage and configure flexibly.

Model : CU802
Frequency band : Frequency band : EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz
Brand : Winext

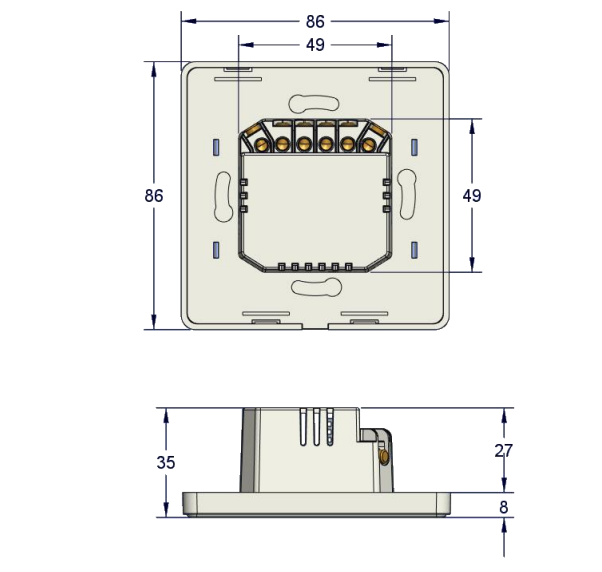

Dimension : 86mm*86mm*41mm



  • Based on standard LoRaWAN™ protocol

  • Temperature control accuracy ±1°C, temperature measurement error ≤0.5°C, temperature setting range 16~32°C

  • The reporting period can be set from 10s to 24 hours, and the current status will be reported immediately after the panel status changes

  • The basic report content includes: current indoor temperature, set temperature, switch status, heating and cooling mode, current wind speed gear, wind speed setting, water valve status

  • 8 time periods can be set independently, automatic perpetual calendar, record cumulative running time, automatic energy consumption measurement, power-off memory, permanent data storage, child lock

wireless performance:

  • Working frequency: EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz

  • protocol standard: Comply with LoRaWAN 1.0.2 standard protocol

working environment:

  • Environmental requirements: Use in indoor environment

Electrical Specifications:

  • Power supply: 86 boxes, external power supply

product specification:

  • temperature setting range:16~32℃

  • Temperature Control Accuracy:±1℃

  • Temperature measurement error:≤0.5℃

  • installation method: In-wall installation
