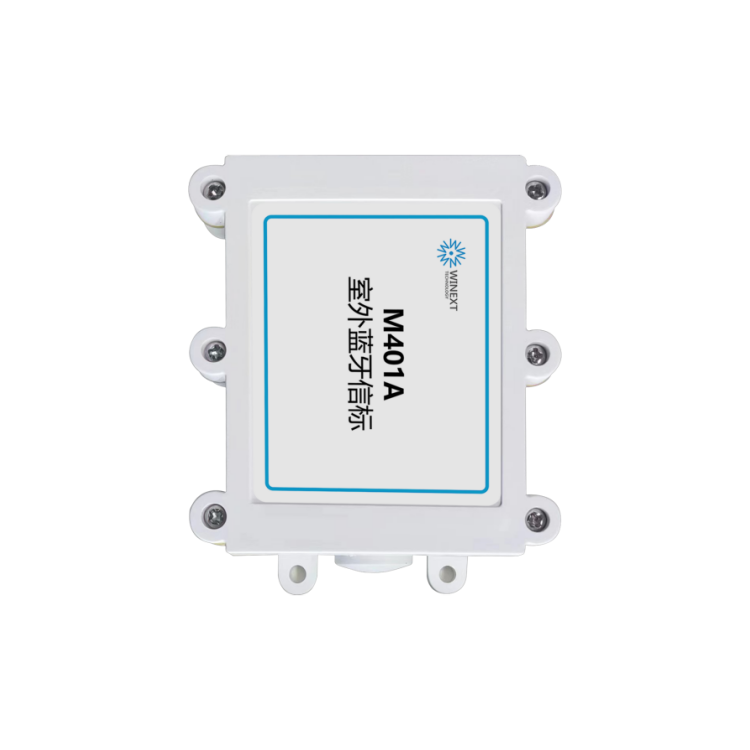

Outdoor Bluetooth Location Beacon M401A

M401A outdoor Bluetooth positioning beacon is a positioning product designed by Shenzhen Winext Technology Co., Ltd. It has the characteristics of low power consumption, low cost, strong anti-interference ability, and easy deployment and application. This product is widely used in indoor positioning, indoor navigation, scenic spot navigation, exhibition navigation, asset management, personnel positioning and other program applications.

Model : M401A
Frequency band : Bluetooth®5.0
Brand : Winext

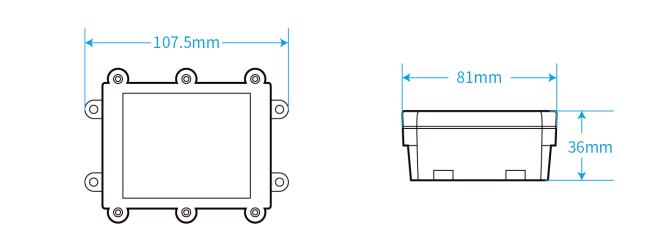

Dimension : 107.5mm*81mm*36mm
  • Detailed information
  • Documents


Features:

  • Based on standard LoRaWAN™ protocol


  • Support Bluetooth 5.0 protocol, with Bluetooth low energy compatible technology


  • Contains high-performance ARM Cortex-M4F


  • Built-in 4000mAh battery power supply


  • IP67 degree of protection


wireless performance:

  • wireless standard: Bluetooth®5.0


  • working frequency: 2400MHz~2483.5MHz


  • Transmission rate:1Mbps


  • wireless security: AES hardware encryption


  • transmission power: -20~+4dBm, increase every 4dBm


Electrical Specifications:

  • Power supply:Battery powered


  • battery specification: 3.6V/4000mAh
