Industrial LoRaWAN Radar Level Sensor
Description
AN-201L is a liquid level monitoring radar sensor based on LoRa Technology.With 80G high-frequency radar chip,it supports ranging under different working conditions such as solid and liquid,The millimeter-wave radar can penetrate obstacles such as light,rain,dust,fog,or frost to detect targets,making it a sensor that operates around the clock and in all weather conditions.It has the advantages of high integration,long range and strong anti-interference ability.
AN-201L is widely used in liquid level measurement in industries such as water supply, sewage, petroleum, chemical, metallurgy, food, pharmaceutical, papermaking and mining.
Features
Ø Supports LoRaWAN protocol;
Ø Built-in 19000mAH battery；
Ø Supports LoRa P2P wireless configuration;
Ø Ingress Protection：IP67;
Ø Accuracy: ±2mm;
Ø Ultra low power consumption.

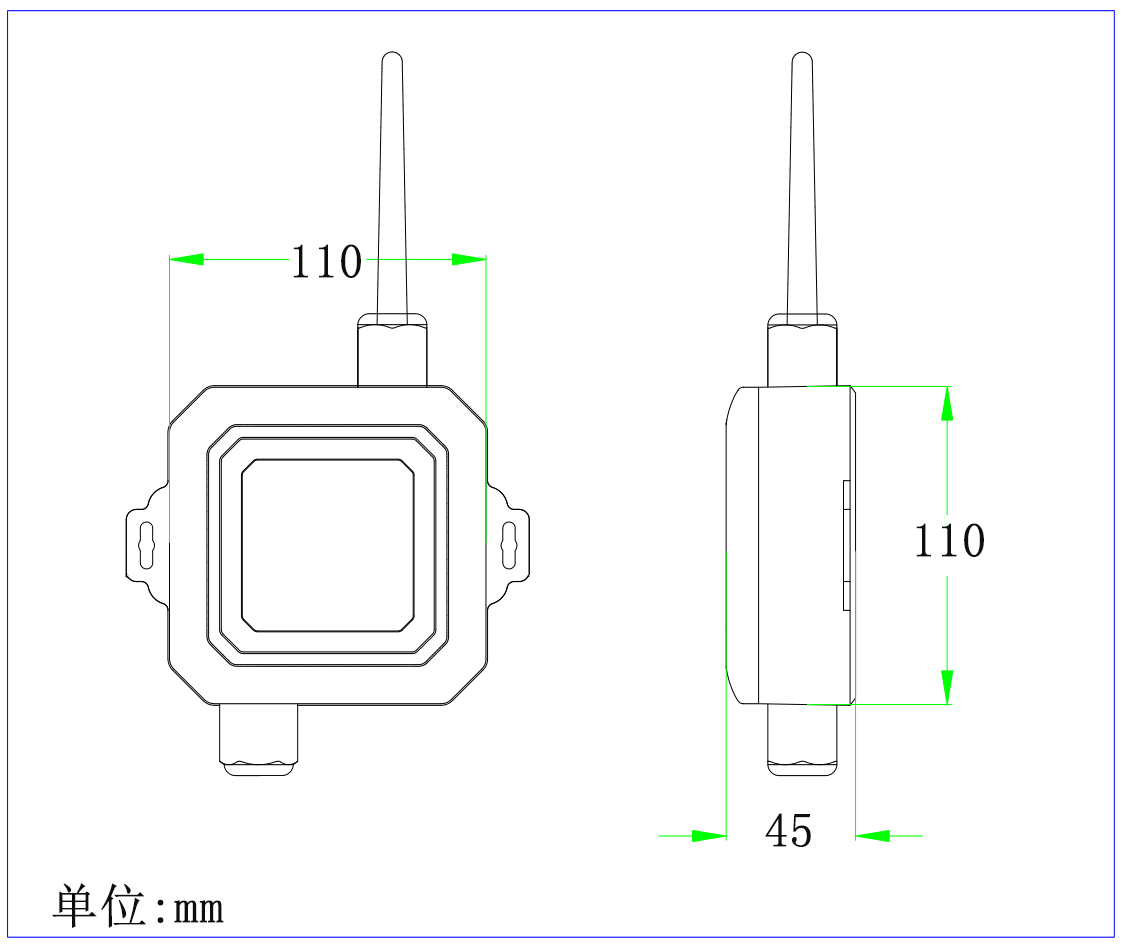

Dimension
(unit:mm)

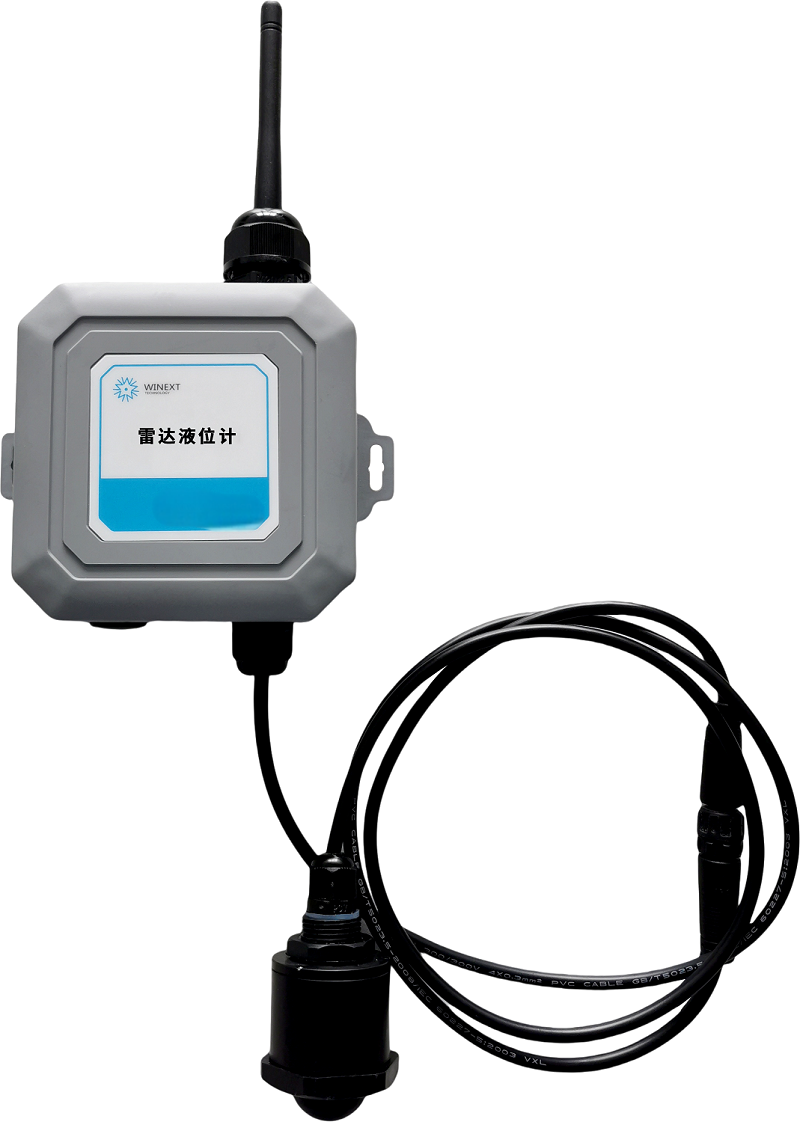

Product Image
parameter
Item | Performance Indicator | |
Wireless Performance | Tx Rate | 300bps～5.4Kbps |
Frequency Bands (Optional) | CN470MHz~510MHz | |
EU863MHz~870MHz | ||
US 902MHz~928MHz | ||
AS923MHz | ||
AU915~928MHz | ||
Max Tx Power | 19dBm | |
Max Rx Sensitivity | -141dBm（SF=12） | |
LoRa Atenna | External Omni Antenna | |
Radar Sensor Performance | Measurement Frequency | 80GHz |
Accuracy | ±2mm | |
Range | 0.1~15/20m | |
Working Environment | Operating Temperature | -20℃～80℃ |
Operating Humidity | 10%~95%RH(Non-condensing) | |
Power | Power Supply | Built-in Battery |
Battery Capacity | 3.6 V/19000mAH | |
| Others | Ingress Protection | IP67 |
Radar Sensor Plug Size | Φ15mm | |
