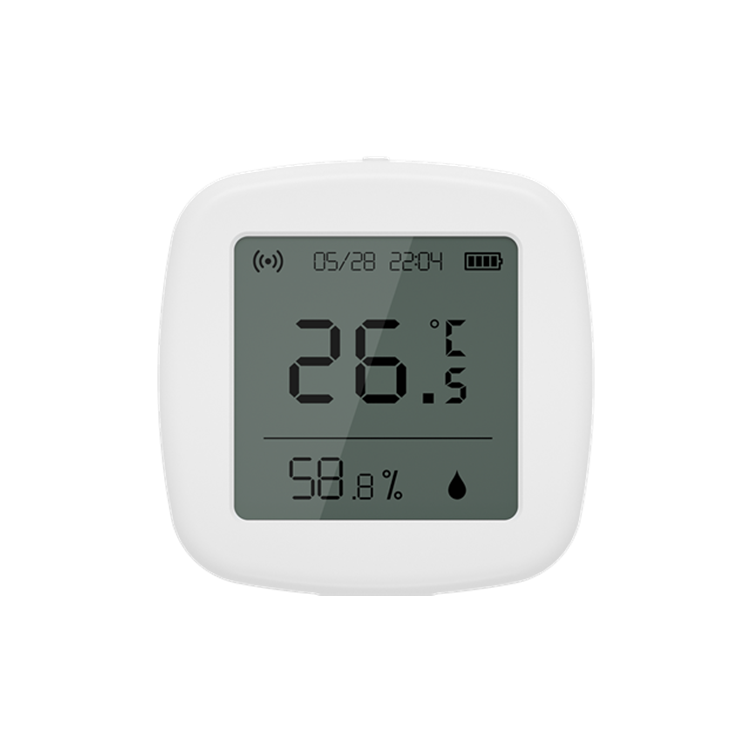

Indoor Internet of Things Temperature and Humidity Meter Sensor AN-310

AN-310 is a product developed by Winext Technology based on the LoRaWAN standard protocol to monitor environmental temperature and humidity. It supports wireless data reporting and local screen display. The built-in low power consumption temperature and humidity sensor has the characteristics of high detection accuracy, stable performance, small size, low power consumption, and long signal transmission distance. It can be widely used in various scenarios such as factories, warehouses, shopping malls, supermarkets, hospitals, pharmacies, wine cellars, and greenhouses.

Model : AN-310
Frequency band : Frequency band : EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz
Brand : Winext
Dimension : 77.7mm*77.3mm*21.6mm


Features:

  • Based on standard LoRaWAN™ protocol


  • Temperature range: -10℃~+50℃, humidity range: 0-99%RH


  • Support high temperature and high humidity threshold alarm


  • Can be placed on a desktop or attached to a metal surface

wireless performance:

  • Working frequency:CN470/EU868/US915/AS923/AU915MHz


  • data transfer rate: 300bps~5.4Kbps


  • Maximum transmit power: 19dBm


  • Receiver sensitivity: -141dBm (SF12)


Electrical Specifications:

  • Power supply:Built-in rechargeable lithium battery


  • battery capacity:3.7V/3200mAh


  • Rated input:USB 5V/1A (need to bring your own adapter)


  • power interface:Micro USB interface


  • Sleep current:38uA


  • send current:≤120mA


  • receive current :≤8mA


product specification:

  • Temperature measurement range: -10°C~+50°C


  • Temperature Measurement Accuracy: ±0.2°C


  • Humidity measurement range: 0%~99%RH


  • Humidity Measurement Accuracy: ±2%
