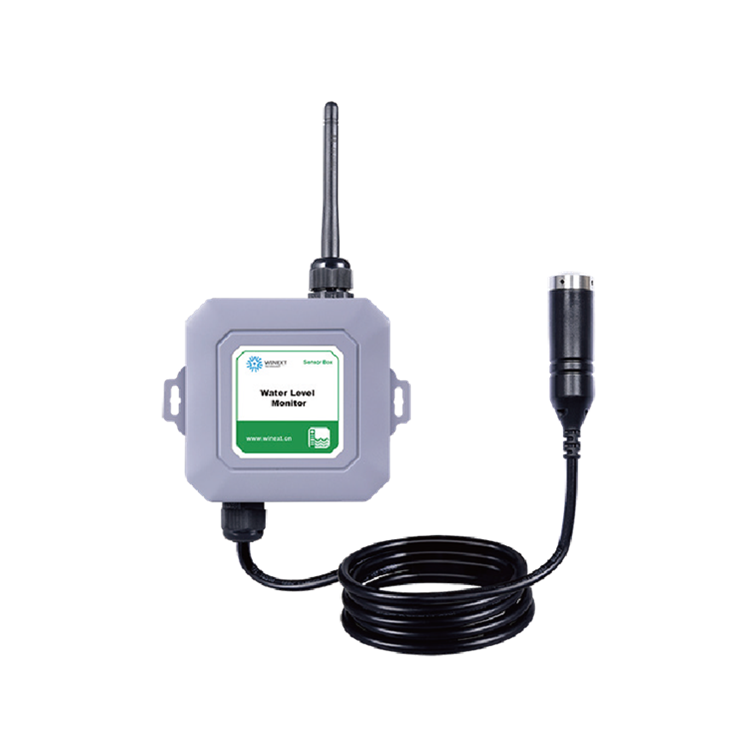

Features:
Adopt LoRaWAN standard protocol
LoRa spread spectrum modulation technology has extremely high sensitivity
Equipped with an external antenna, the communication distance can reach
1KM ~ 10KM (depending on the interference of the surrounding environment)
The sensor has a wide measuring range and high stability
Range: 0~2, 5, 10, 20, 50m, etc. H2O (optional), accuracy ±0.5%FS, ±0.2%FS/year
Low power consumption design, built-in 19000mAh high-capacity battery
IP65 protection level, can be used in harsh indoor and outdoor environments
The measured pressure is too high/low to automatically upload alarm data
Battery low voltage automatic upload alarm
wireless performance:
Working frequency:CN470/EU868/US915/AS923/AU915MHz
data transfer rate:300bps～5.4Kbps
Maximum transmit power:19dBm
Receiver sensitivity:-140dBm (SF12)
working environment:
Operating temperature: 0℃～+80℃
Working humidity: 10%~95%RH (non-condensing)
Electrical Specifications:
Power supply:Built-in high-capacity battery
battery capacity: 3.6V/19000mAh
supply voltage:DC 3.3V
Sleep current:≤10uA
send current: ≤130mA
Items | Performance indicators | |
Level Sensor | Measurement range | 0~5m, 0~10m...100m(Optional) |
Accuracy | ±0.5%FS | |
Working Voltage | 3.3V | |
Sensor Material | 96% Aluminum Oxide Ceramic | |
Sensor Housing Material | High-quality Stainless Steel 316L, PTFE (Polytetrafluoroethylene) | |
Signal Cable Port | PG16 | |
Sealing Material | Fluorinated Rubber, PTFE | |
Cable Length | 10meters (Customized) | |
Wireless | Data TX Rate | 300bps～5.4Kbps |
Frequency Bands | CN470MHz~510MHz | |
EU863MHz~870MHz | ||
US 902MHz~928MHz | ||
AS923MHz | ||
AU915~928MHz | ||
Max Tx Power | 19dBm | |
Rx Sensitivity | -140dBm（SF=12） | |
Working Environment | Operating Temperature | 0℃～60℃ |
Operating Humidity | 0%~95% | |
Power Supply | Power Supply | Built-in battery |
Battery Capacity | 3.6 V/19000mAH | |
Input voltage | DC 3.3V | |
Standby Current | ≤10uA | |
TX Current | ≤130mA | |
Others | Ingress Protection | IP64 |
Dimension | Sensor Box: 110mm*110mm*45mm (antenna excluded) Liquid Level Sensor：Φ27mm*100mm | |
