AN-113 LoRaWAN Displacement Monitor

Description

The AN-113 LoRaWAN Displacement Monitor is a wireless assets tracker based on the LoRaWAN standard protocol. It utilizes LoRa technology for data transmission over long distances, offering the advantages of low power consumption and extensive coverage. The monitor is equipped with a G-sensor and anti-dismantle switch sensor, enabling real-time monitoring of displacement changes. It also features an integrated power switch module and charging interface for managing the device's power supply. Moreover, the device is compact and includes additional functions such as automatic alarms, alert tones, and magnetic charging capabilities.

Ideal for tracking and monitoring a variety of assets, including vehicles, movable property, bulk commodities, and shared bicycles, across different applications.

Features

       Ø Supports the standard LoRaWAN protocol;

      Ø  LoRa Frequency Band: CN470/EU868/US915/AS923/KR923/IN865MHz (optional)；

      Ø  Built-in G-sensor gravity sensor, support object movement detection;

      Ø  Ingress Protection Rate: IP65;

      Ø  Supports anti-theft tracking for personnel or objects;

      Ø  Built-in anti-dismantle sensor with alarm function;

      Ø  Built-in 2400mAh rechargeable battery;

      Ø  Low power consumption.

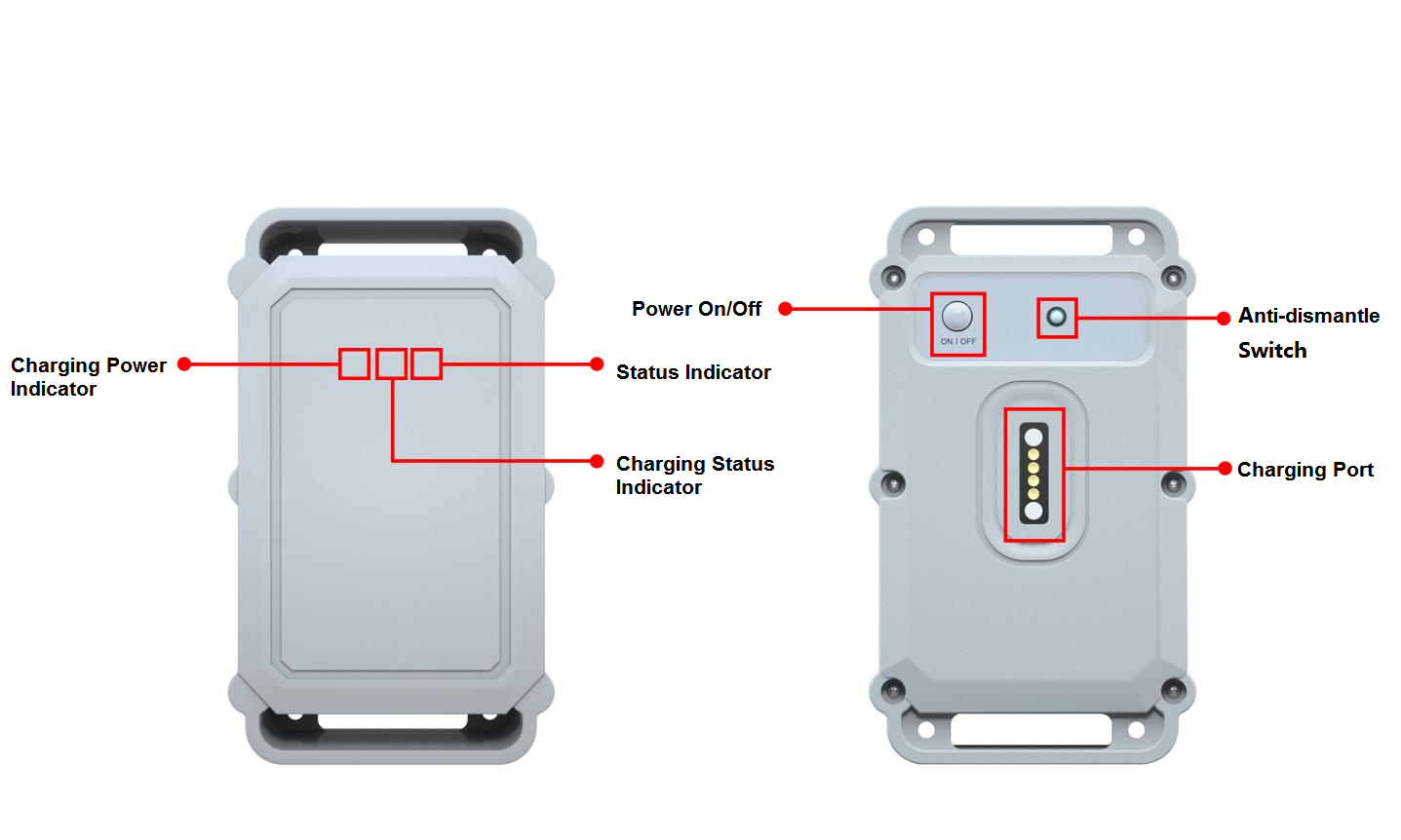

Interfaces

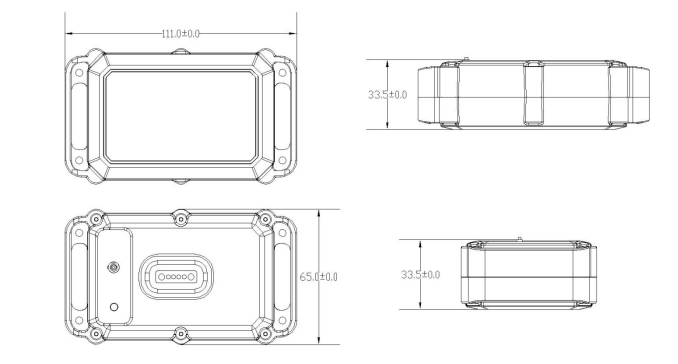

Dimension

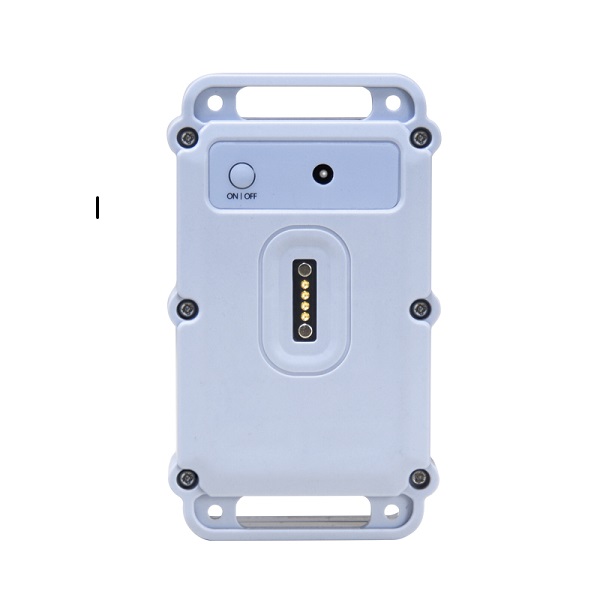

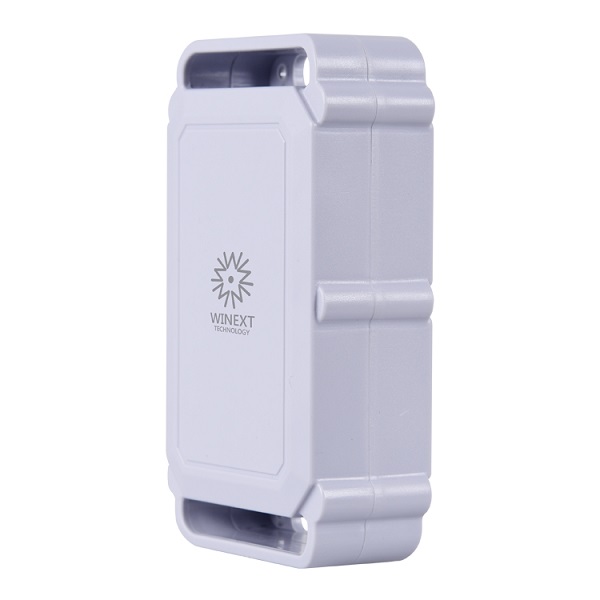

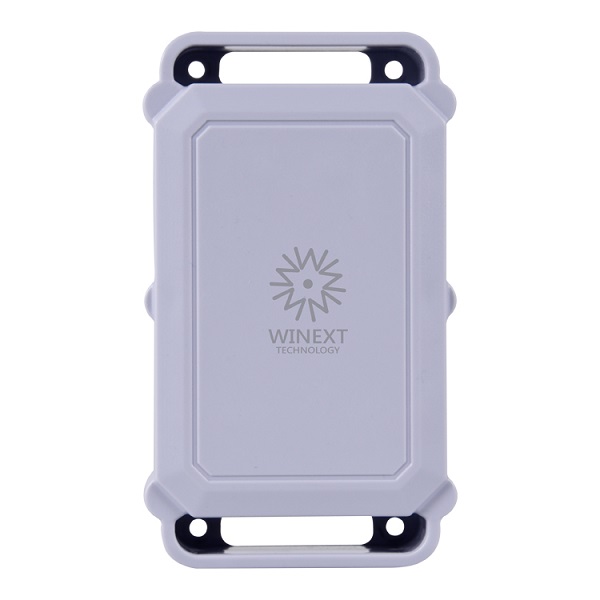

 Images

parameter
