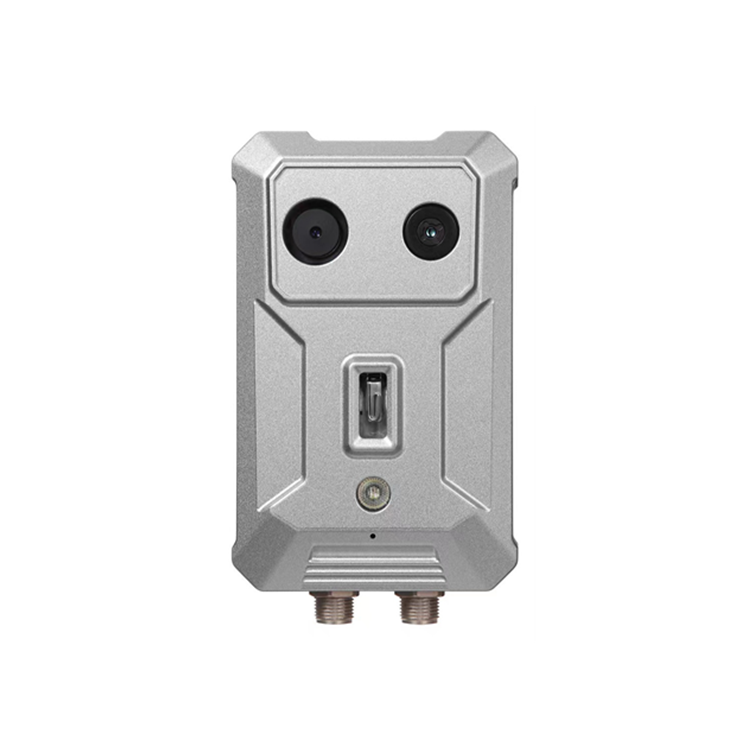

Multi-spectral fire detection terminal sensor CU2000

CU2000 is a multi-spectral fire detection terminal, real-time detection full-screen abnormal temperature short-term climbing trend warning, high temperature abnormal alarm can be set, suitable for boilers, iron towers, transformers, thermal power plants, airplanes, trains, ships, factories, warehouses, Computer rooms, gas stations, oil fields, oil production plants, refineries and other places with high fire safety requirements.

Model : CU2000
Frequency band : Frequency band : EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz
Brand : Winext
Dimension : 85mm*35mm*133mm


Features:

  • Real-time full-screen temperature measurement, high temperature abnormal alarm can be set


  • Real-time detection of full-screen abnormal temperature short-term climbing trend warning


  • Support custom point, line, surface and area temperature measurement, interval temperature measurement comparison


  • Support fire point/spark recognition and voice alarm, white light alarm, and location of environmental fire point/spark


wireless performance:



  • Wireless connections: LoRa


working environment:


  • Operating temperature:-20℃~+60℃


  • Working humidity: 0%~90%RH(no condensation)


  • Temperature range: -20°C-+150°C


  • Temperature measurement accuracy: ±2°C (highest accuracy)


  • Temperature measurement distance: 13 meters, sensing high temperature and fire point with a diameter ≥ 10cm



Electrical Specifications:

  • powered by: DC 12V/1A

  • equipment power: 8W(MAX)


product specification:


  • weight: 2kg
