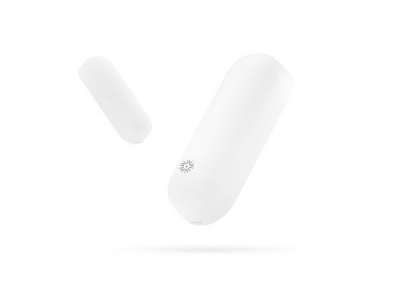

LoRaWAN door/window sensor AN-305A

The AN-305A LoRaWAN Door/ Window Contact sensor tells your system if something is open or closed. It supports standard LoRaWAN communication protocol. It has high detection accuracy, stable performance and low power consumption. It has two pieces: one installed on the door itself; the other installed next to it on the jamb. When the door is opened and pieces move apart, the sensor signals ‘open’ to your security system.When doors and windows open or someone enters without authorization, it will be triggered. At meanwhile, the information will be automatically sent to users through the network.

Model : AN-305A
Frequency band : Frequency band : EU863-870MHz; AU915-928MHz; US902-928MHz; AS923; CN470-510MHz; RU864-870MHz, IN865-867MHz
Brand : Winext
Dimension :

LoRaWAN door/window sensor AN-305A for smart building, smart home:

The AN-305A LoRaWAN Door/ Window Contact sensor tells your system if something is open or closed. It supports standard LoRaWAN communication protocol. It has high detection accuracy, stable performance and low power consumption.

It has two pieces: one installed on the door itself; the other installed next to it on the jamb. When the door is opened and pieces move apart, the sensor signals ‘open’ to your security system.When doors and windows open or someone enters without authorization, it will be triggered. At meanwhile, the information will be automatically sent to users through the network.



Application:

Typically installed on door, windows or drawers throughout the house. For example, you can get an alert if a window open when you go to bed, or if you leave home without closing the back door.



 Product Features:



Support LoRaWANTM

Frequency: CN470/AS923/ EU868/US915/AU915 optional

It can be integrated with door contact, PIR Motion sensor, temperature and humidity sensor functions

Built-in battery for as long as 1-2 years life span

Pocket size and easy to install

Battery changeable

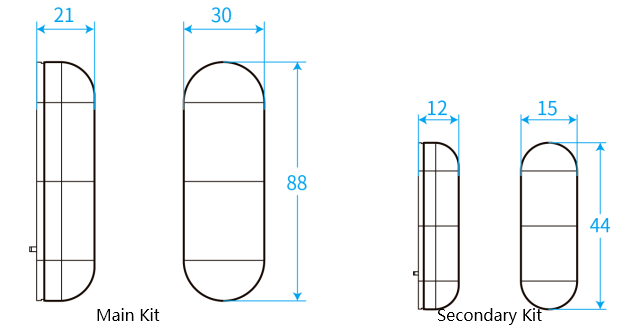

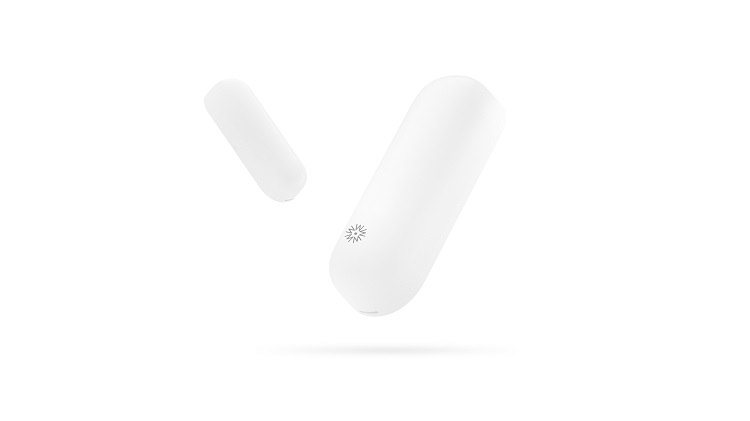

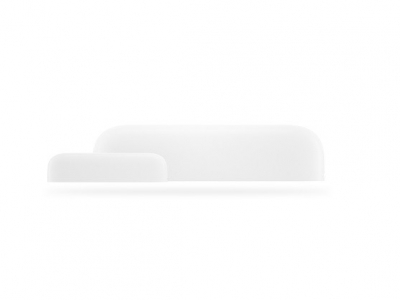

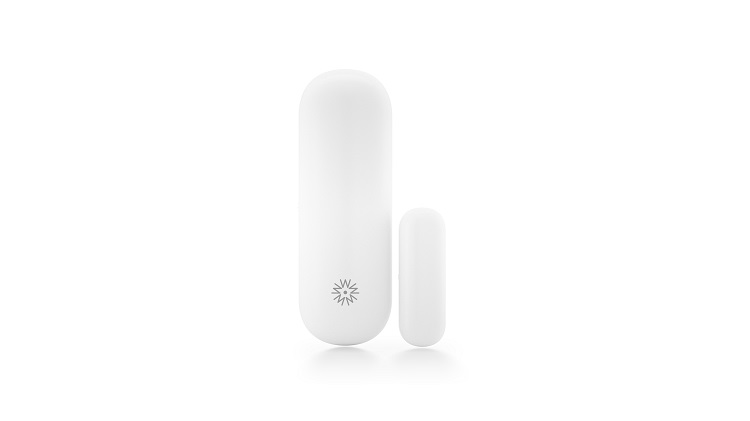

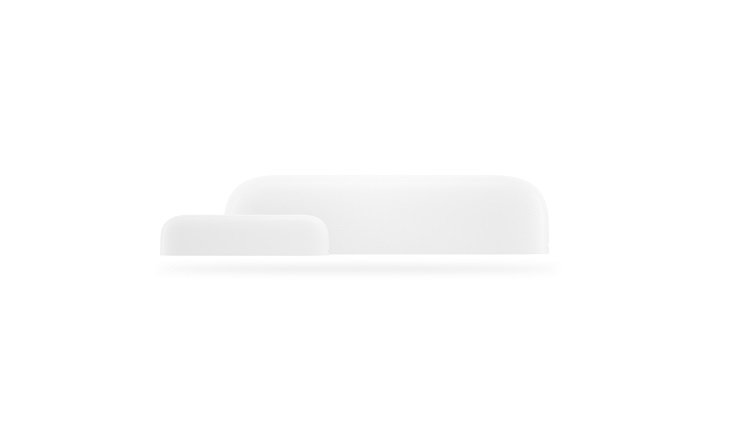

Product dimension and images:


1603445118130252 (1).png
