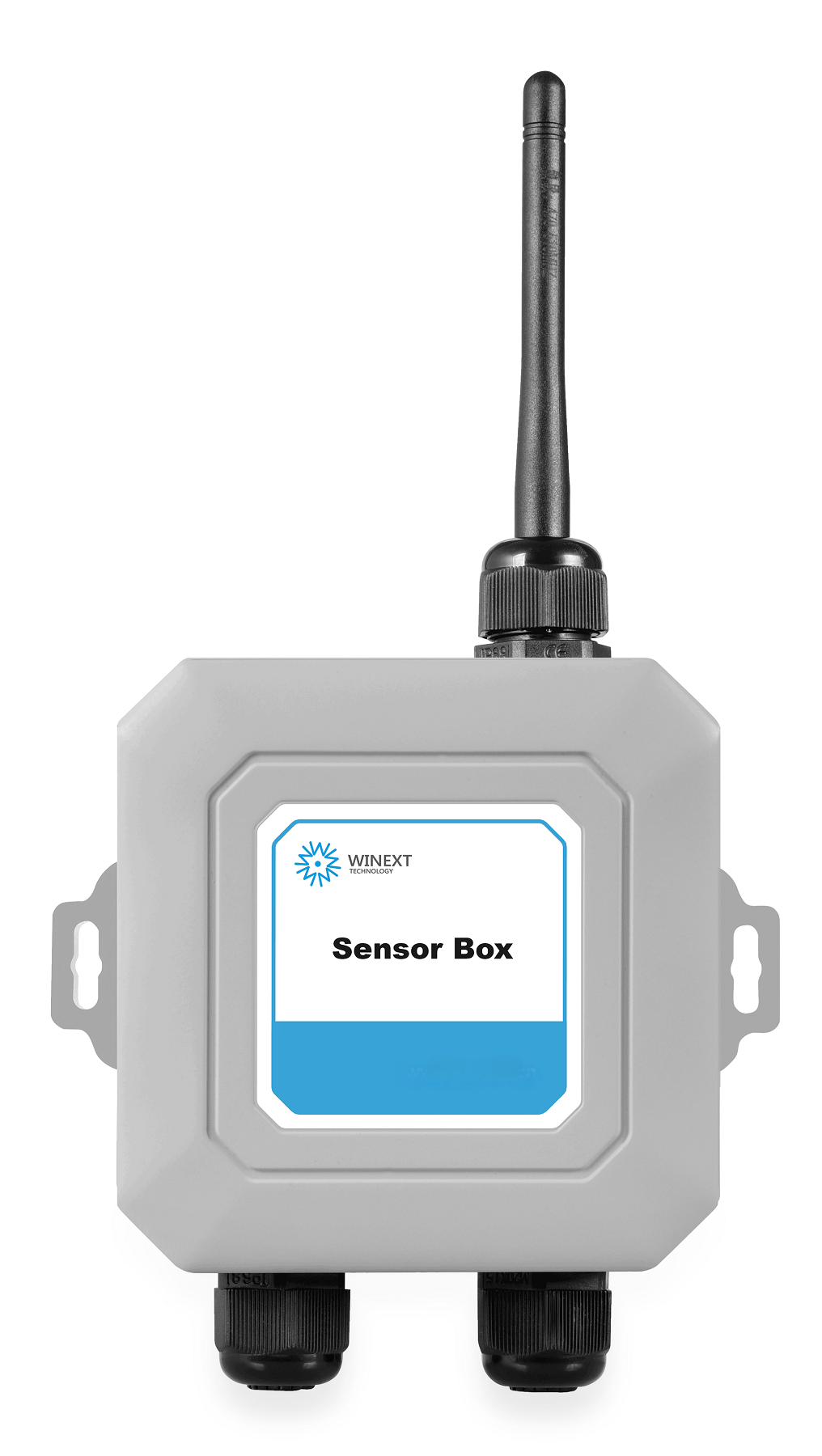

AN-201A LoRaWAN Sensor Box

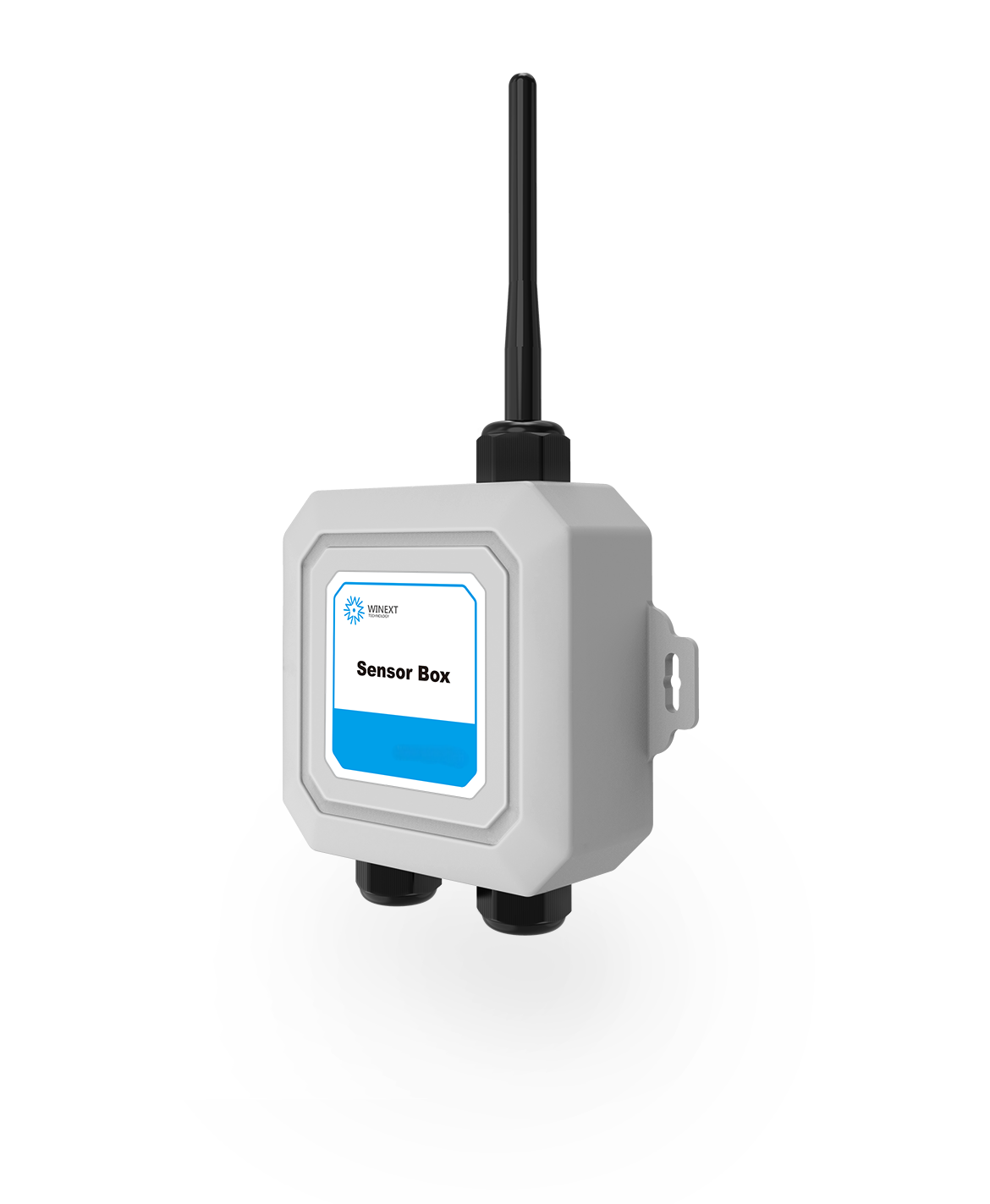

Description
AN-201A Sensor Box is a wireless data gathering device, compliant with LoRaWAN. It has been integrated with multiple communication ports for a variety of sensors. Its high-gain omni-directional external antenna expands the communication distance. External power supply and battery power supply are optional. With battery capacity Up to 19000mAh, it enables a long lifespan, reduces cost of battery replacement. It has a rugged enclosure with IP65 ingress protection rate. It can be fixed by pole-mounted and wall-mounted method, installed on pole, walls of the building, roof and etc.
Suitable for workshop, warehouse, agricultural greenhouse, docking within scenarios such as rooms, hydrological monitoring sensors, e.g.: hydraulic pressure sensors, liquid level sensor, liquid flow sensor, water sensor, temperature sensor, humidity sensor, light sensor, PM2.5, angle sensor, wind speed sensor, etc.
Features
Ø Supports LoRaWAN protocol;
Ø Frequency Bands: CN470-510/EU863-870/US902-928/AS923~925/AU915~928/CT850 Mhz etc.
Ø Integrates multiple communication interfaces: SPI, UART, ADC, GPIO, I2C,etc.
Ø Ingress Protection Rate:IP65
Ø Low power consumption,external power supply and built-in battery optional
Ø Battery power supply mode uses a large capacity battery of 19000mAh
Ø Supports multiple voltage outputs:3.3V, 5V, 9V, 12V, etc.
Ø supports wired and wireless parameter configuration and firmware upgrades; supports remote configuration
Ø Supports low battery alarm
Ø Supports heartbeat package reporting, heartbeat interval is configurable
Ø Operating temperature: -20℃～+70℃

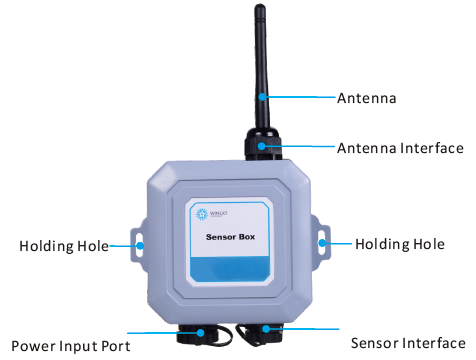

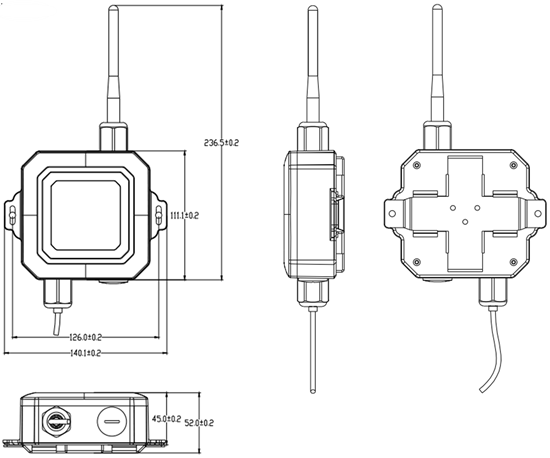

Dimension
(unit:mm)
parameter
Item | Specification | |
Wireless Performance | Data Transmission Rate | 300bps~5.4Kbps |
Frequency Bands | CN470MHz~510MHz | |
EU863MHz~870MHz | ||
US 902MHz~928MHz | ||
AS923~925MHz | ||
AU915~928MHz | ||
CT850MHz | ||
Max Tx Power | 19dBm | |
Max Link Budget | 160dB | |
Max Rx Sensitivity | -140dBm(SF=12) | |
LoRa Antenna | Omnidirectional external antenna | |
Communication Port | UART, SPI, I2C, GPIO, ADC, RS485 | |
Operating Condition | Temperature | -20℃～+70℃ |
Humidity | 10%~95%RH non condensing | |
Power Supply | Power Supply | DC5-24V input; built-in battery optional |
Battery Capacity | 3.6 V/19000mAH | |
Power | Sleep Current | ≤6uA |
Tx Current | ≤125mA | |
Rx Current | ≤16mA | |
Others | External Sensors Suitable | RS485 port: suitable for wind speed sensor, wind direction sensor, GPS, water meter, electricity meter and gas meter, etc… |
PT1000 port: temperature sensor | ||
I2C port: gravity sensor, temperature and humidity sensor, etc. | ||
GPIO port: suitable for immersion sensor, angle sensor, smoke detector (software not support temporary) | ||
ADC port: pressure sensors, liquid level sensors, temperature and humidity sensors, light sensors, flow sensors, carbon dioxide sensors, etc. | ||
Ingress Protection Rate | IP65 | |
Dimension | 110*110*45mm(antenna excluded) | |
