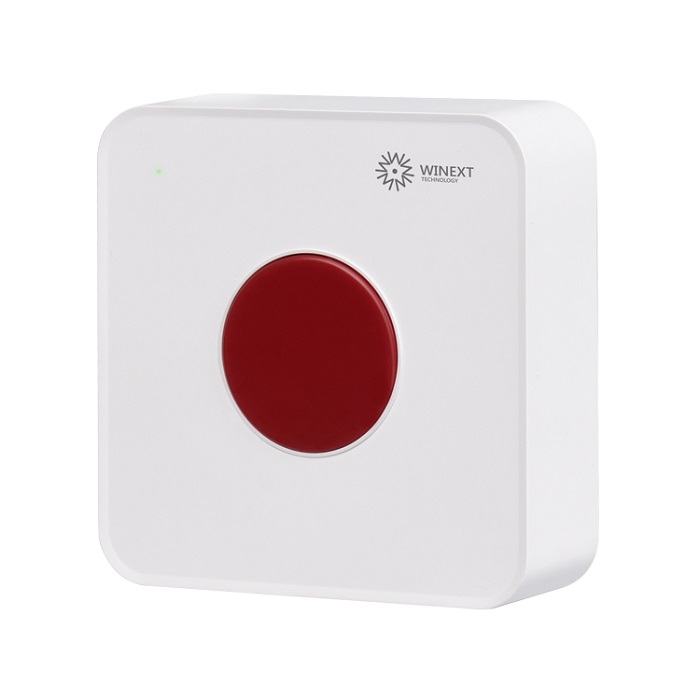

LoRaWAN SOS button AN-301

AN-301 SOS Button adopts LoRa RF technology, and supports LoRaWAN protocol. It needs simple networking, long-distance transmission and low power consumption. With built-in high capacity battery, it is wireless and easy for installation. When you are in an emergency situation, press the SOS button. The alarm signal is sent through wireless transmission to the monitoring platform. Security can be deployed in time.

Model : AN-301
Frequency band : EU868/US915/AS923/AU915/RU864-870MHz/IN865-867MHz/KR920-923
Brand : Winext
Dimension : 86*86*26mm

LoRaWAN SoS button AN-301 for smart building, smart home:


     AN-301 SoS Button adopts LoRa RF technology, complying with LoRaWAN protocol. It needs simple networking and low power consumption. With built-in high capacity battery, it is wiring free and easy for installation. When you are in an emergency situation, press the SOS button. The alarm signal is sent through wireless transmission to the monitoring platform. Security can be deployed in time.


          Application:

                   It can be used in schools, hospitals, banks, depots, stores, and other facilities.


          Product Features:


   l  Support LoRaWANTM

   l  One-click button alarm

   l  Built-in 8000mAh battery

   l  Support low power alarm

   l  Support watchdog protection circuit


Product Features:



Item

Specification

Remark

Hardware

SOS button

SOS trigger alarm

Antenna

Built-in LoRa Antenna

Wireless performance

Transmission rate

300bps–5.4Kbps

Frequency

CN470-510MHz

EU863-870MHz

US902-928MHz

AS923MHz

AU915-928MHz

KR920-923MHz

Max Tx power

19dBm

Rx sensitivity

-141dBm (SF=12)

Working Ambient

Working temperature

-10+50

Working humidity

10%-95%(no condensing)

Electric parameter

Power supply

Li/SOCL2 battery

Battery capacity

3.6V/8000mAh

Power supply

DC 3.3V

Standby electric current

≤10uA

Tx current

≤125mA

Physical parameter

Dimension

86*86*26mm

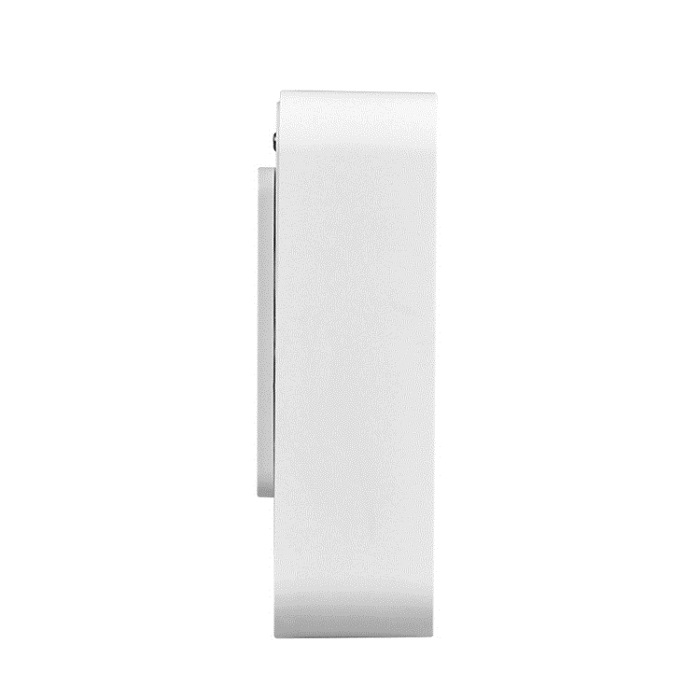

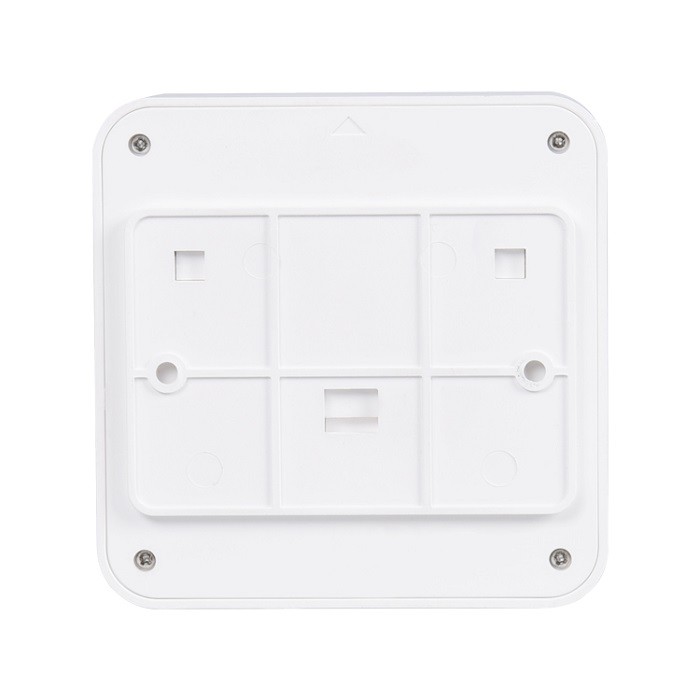

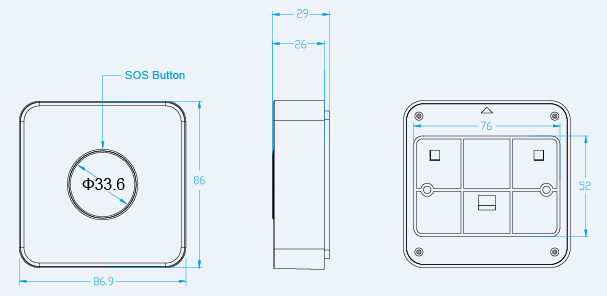

 Images and dimension:
