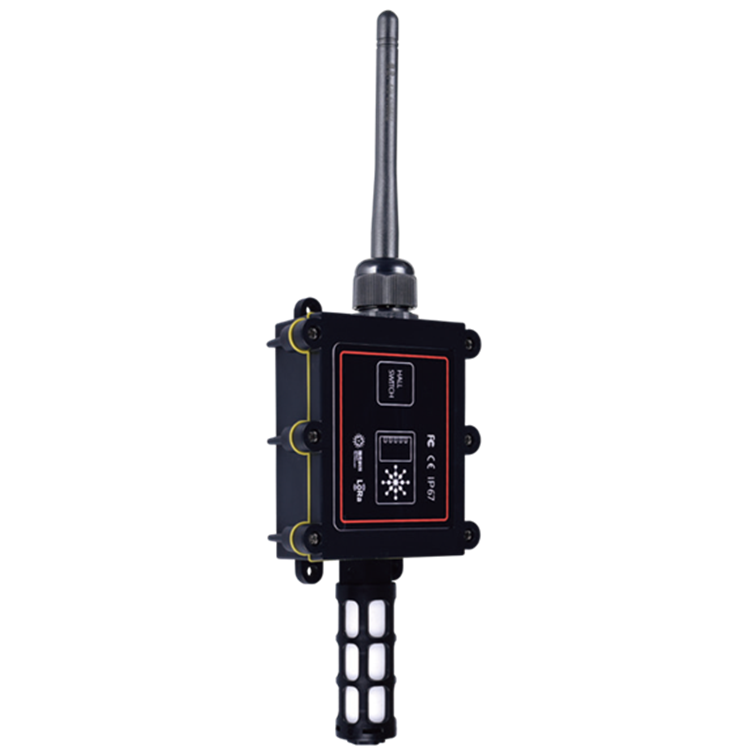

Industrial-grade temperature humidity sensor AN-103A for smart building, smart warehouse, smart community:
AN-103A LoRaWAN Temperature and Humidity Sensor is a wireless temperature and humidity acquisition. It is designed for temperature and humidity monitoring and alarm. It comply with LoRaWAN standard communication protocol and integrates data acquisition and monitoring. With built-in temperature and humidity sensor chip, it has high detection accuracy, stable performance with low power consumption. It has long transmission distance and reliable signal output.
Application scenarios
It is widely used in communication machine room, workshop production line, pharmaceutical warehouse, large logistics warehouse, greenhouse, flower greenhouse, archives, museum, HVAC control and others.
Product features:
◊ Support standard LoRaWANTM
◊ High accuracy
◊ Waterproof IP67
◊ Working Temperature: -30℃~80℃
Technical Parameter:
Description | Parameter |
Communication | LoRaWANTM protocol |
Frequency | CN 470MHz~510MHz |
EU 863MHz~870MHz | |
US 902MHz~928MHz | |
AU 915MHz~928MHz | |
AS 923MHz~925MHz | |
Max Rx Power | 17dBm |
Rx sensitivity | -140dBm |
Output voltage | -30℃~+80℃ |
Power consumption | 36mW |
Battery volume | 3.6V/ 8000mAh |
Power | Built-in lithium battery |
Sleep mode current | 15uA |
Transmission current | 110mA |
Dimension | 168mm x 81mm x 36mm |
IP grade | IP67 |
