LoRaWAN Wireless Smoke Alarm
Description

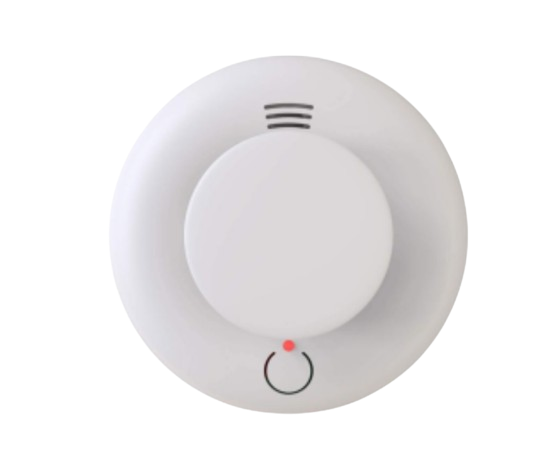

The JTY-AN-503A Smart Smoke Alarm, leveraging LoRaWAN wireless technology, is a highly sensitive photoelectric fire detector designed for a variety of environments. Renowned for its durability and stable performance, it can swiftly detect smoke from a fire and immediately trigger an alarm. Additionally, it sends alerts to a management platform or user's mobile through remote push capabilities, enabling intelligent, digital monitoring and management.
This effectively enhances the emergency response to fires, ensuring the safety of people and property.
Features
Ø Supports LoRaWAN protocol;
Ø Equipped with photoelectric smoke detection technology;
Ø Built-inLED indicator light and a buzzer alarm;
Ø The heartbeat cycle can be remotely configured;
Ø Supports remote mute ;
Ø Supports tamper-proof alarms and low-voltage detection.

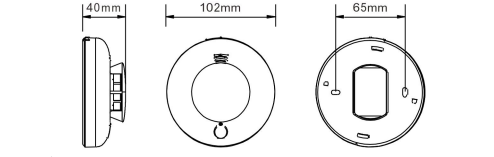

Dimension
(unit:mm)
parameter
Items | Parameters | Performance Indicator |
Hardware | Operating Voltage | DC 2.5 to 3.3V |
Power Supply | Built in 3V 2800mAh CR17505 Battery | |
Alarm Indication | Red LED indicator light and buzzer | |
Alarm Sound | >80dB (3 meters directly in front) | |
Operating Current | ＜100mA | |
Standby Current | ＜10uA | |
Mute | Press and hold the self-test button for 3 seconds during the alarm | |
Reset | Automatic reset when smoke concentration falls below the alarm threshold | |
Wireless | Communication | LoRa |
Frequency Bands | CN470MHz~510MHz /EU863~870MHz /US902~928MHz /AS923MHz /AU915~928MHz (Optional) | |
Working Environment | Operating Temperature | -10℃～50℃ |
Operating Humidity | ≤95%RH | |
Protection Area | ≥20㎡ | |
Others | Device Life span | ＞10 years (Not for battery) |
Battery Life | Approximately 3 years | |
Housing Material | White ABS | |
Product Weight | Approximately 200g (including battery) | |
Dimension | Φ102mm * 40mm |
